I build several CNC based machines every year.  While I can pull out one of my full 4 channel controller assemblies, that's a little more effort than it is worth if I just need to do a simple drive test.

This one lets me do a real quick check on a single axis drive system.

I single knob controls the stepper motor speed. A button enables or disables the motor driver. A second button controls the motor direction. It has plenty of power to control motors that require up to 4 Amps per phase.

Major Components

There are three major components that make up the stepper motor tester.

Power Supply

The tester uses a 24v 15Amp power supply.  While a 24v 7Amp  power supply would work, the cost and availability for this one gives you your best bang for the buck.

You can find one here:

24V 15Amp Power Supply

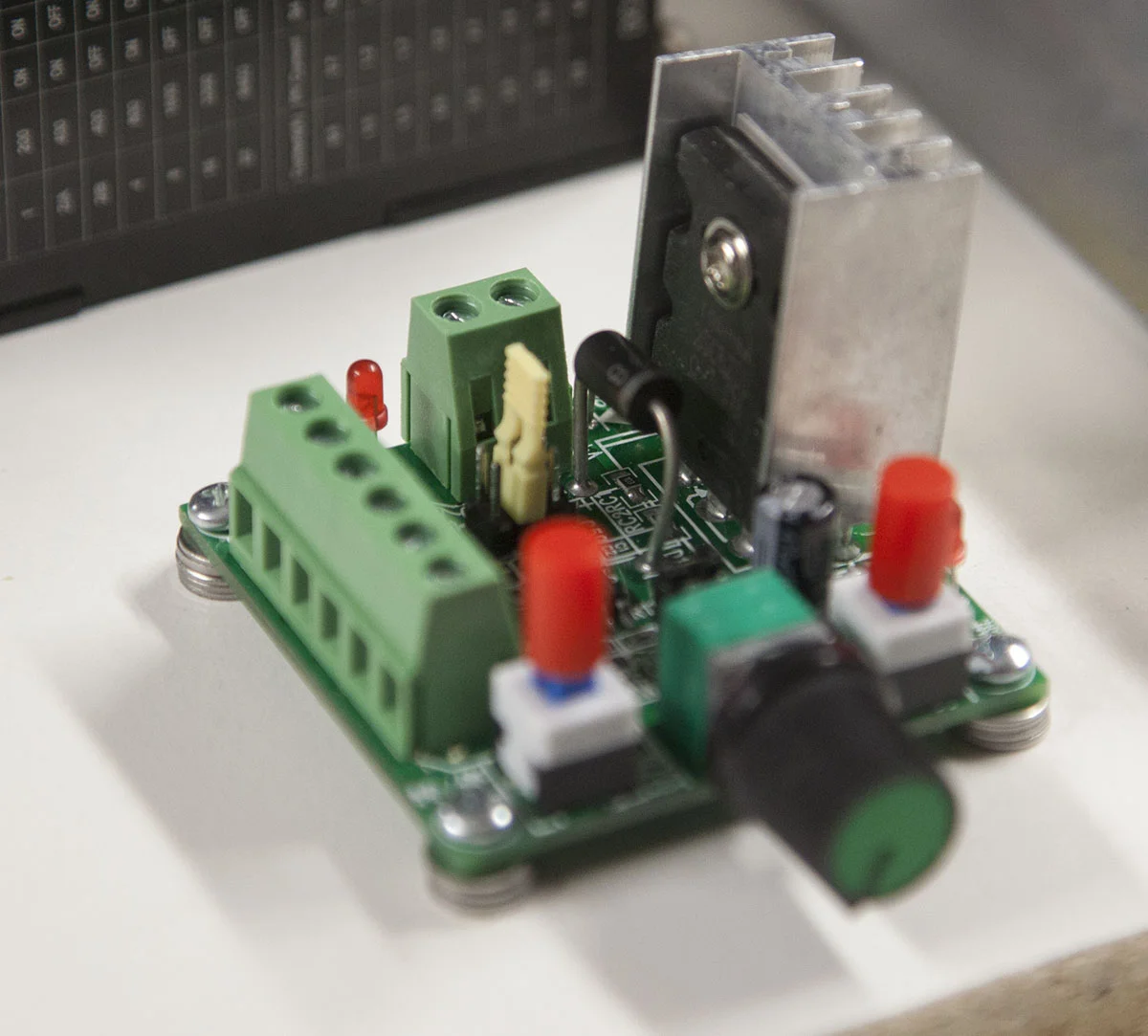

Pulse Generator

To create the pulses needed to move the stepper motor this little pulse generator works like a charm.

It supports:

  • Motor Enable
  • Step Direction
  • Step Pulse

You can pick one up here:

Pulse Generator

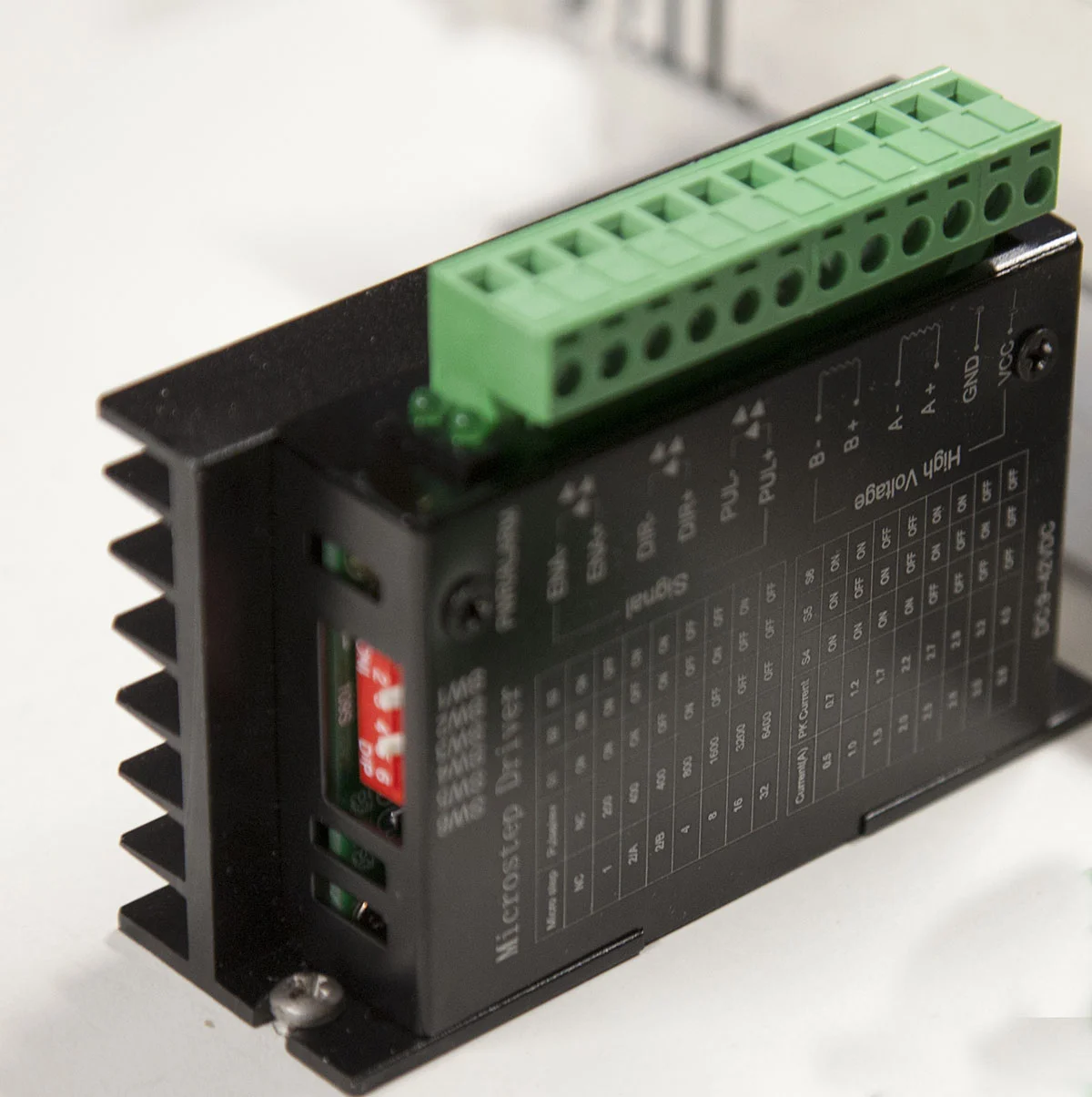

Stepper Motor Driver

To drive the stepper motor you will need a driver like the one shown here. It supports up to 3.5 Amps continuous and 4 Amps peak.

You can set the micro-step rates from 1 to 32 steps.

Get it here:

4Amp Stepper Driver




I created a base for the components out of a 3/4" thick melamine coated particle board cut to 11-1/2" x 11-1/2".

I placed two 5/8" holes 6" apart at the rear of the base.  These will allow me to hang the testor on my pegboard walls when not in use.

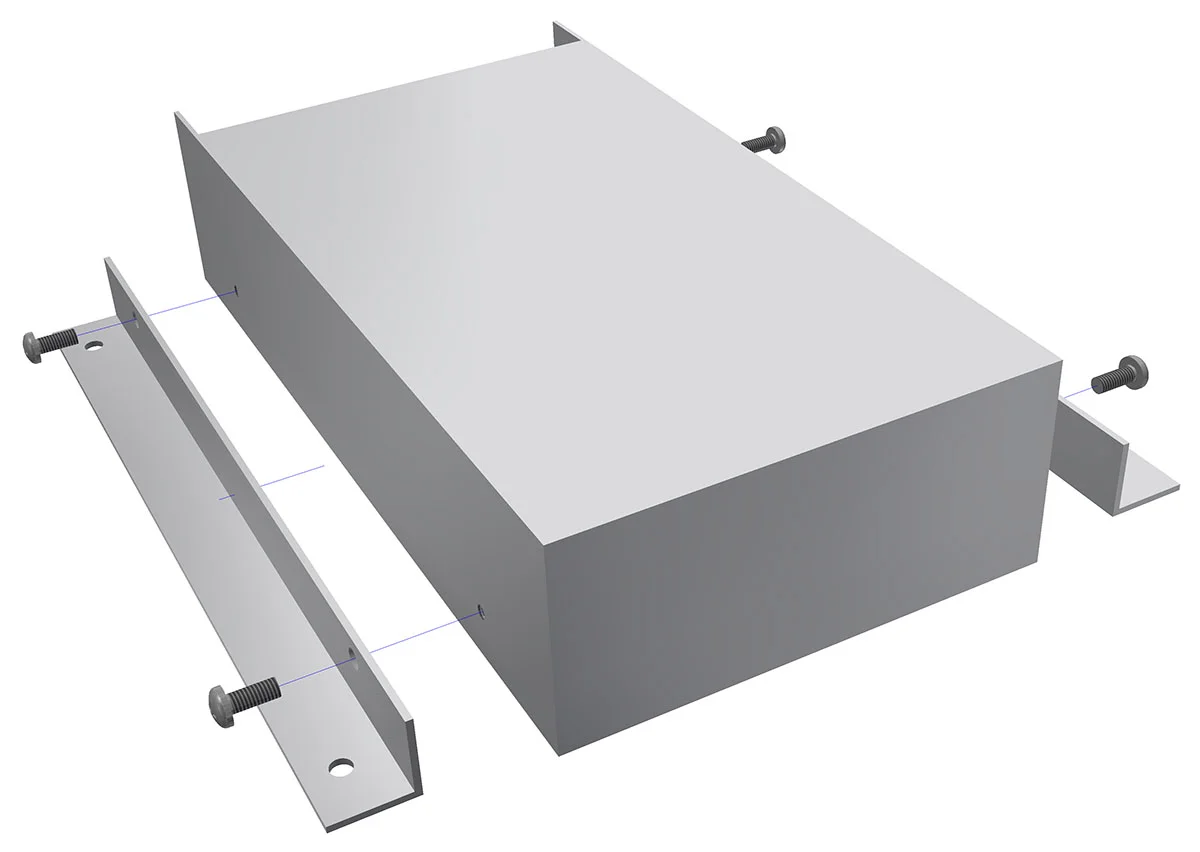

Power Supply Brackets

While you can attach the power supply in a multitude of ways, I elected to mount two 3/4" aluminum angles to the sides of the power supply.  They are secured with four M4 machine screws.

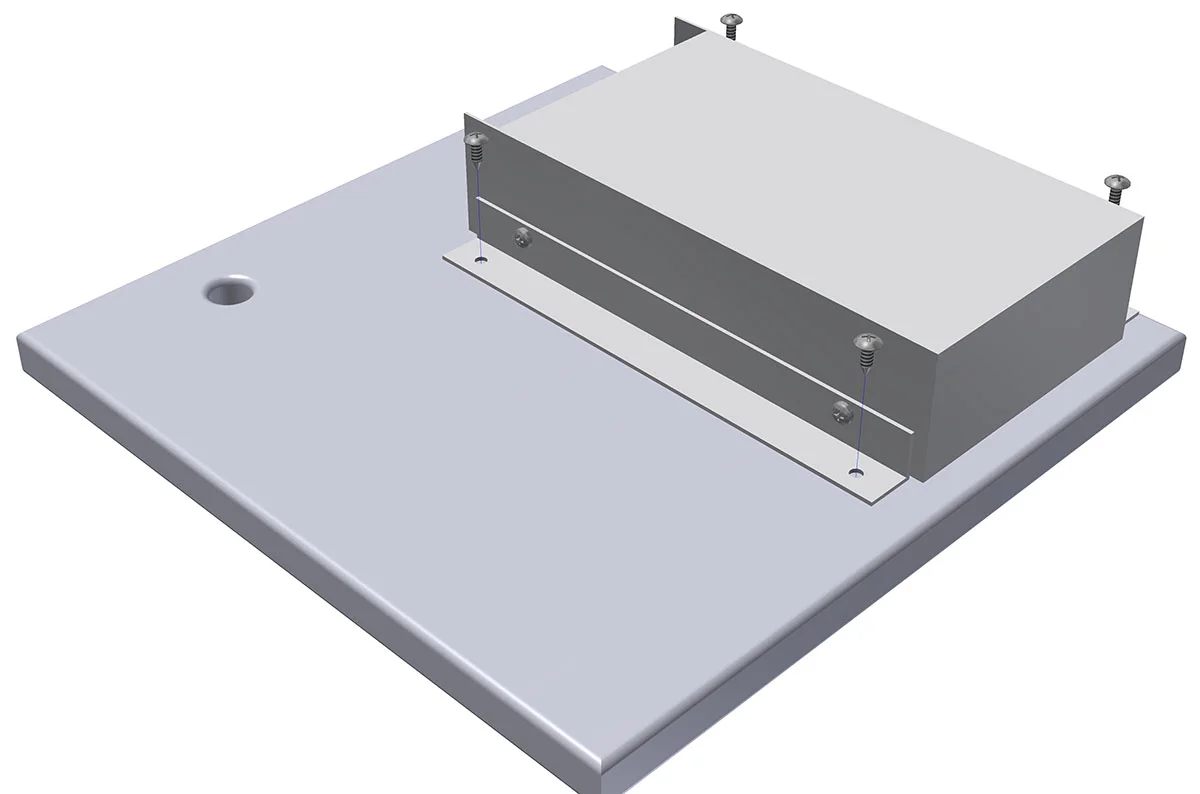

Mount Power Supply

I then used some #6 wood screws to attach the power supply to the base. It is mounted close to the right edge and about 1/2" from the front.

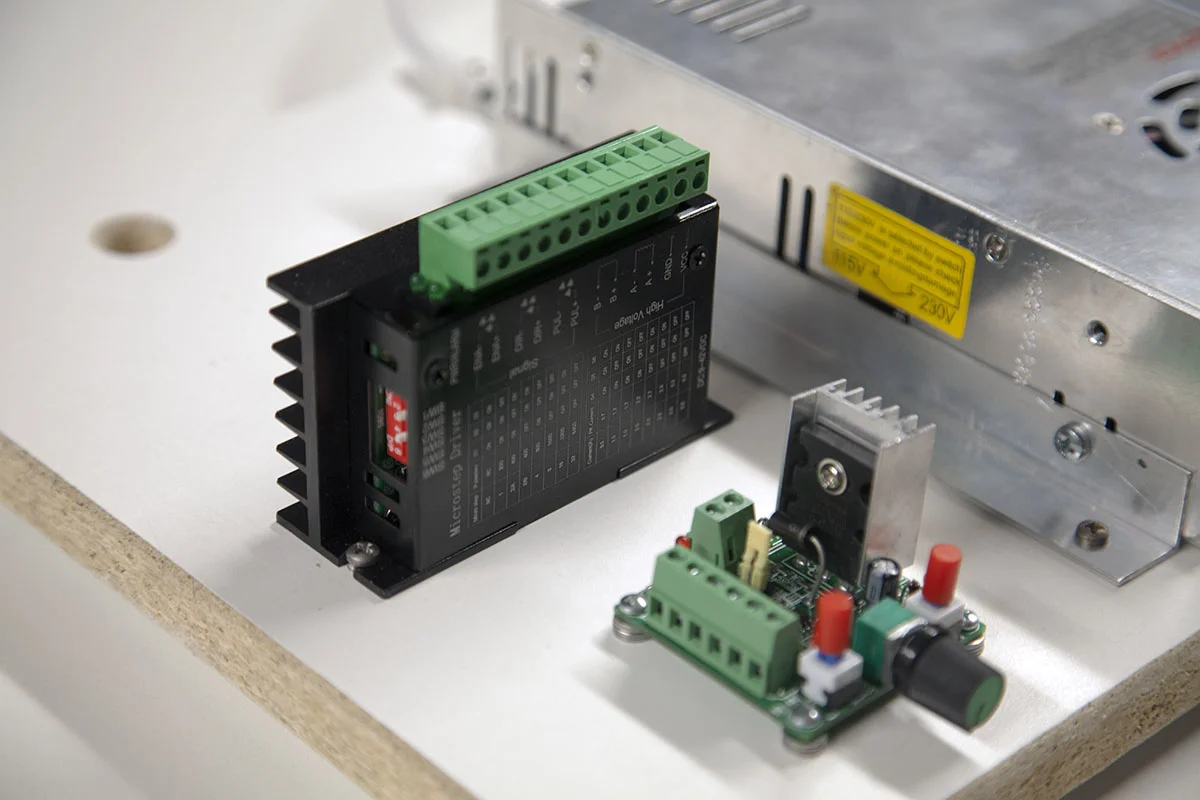

Mount Pulse Generator and Driver

The pulse generator is mounted to the base using some #4 wood screws.  I added four #4 washers under each corner to keep the PCB off the surface of the base.

The stepper motor driver is added to the base behind the pulse generator.

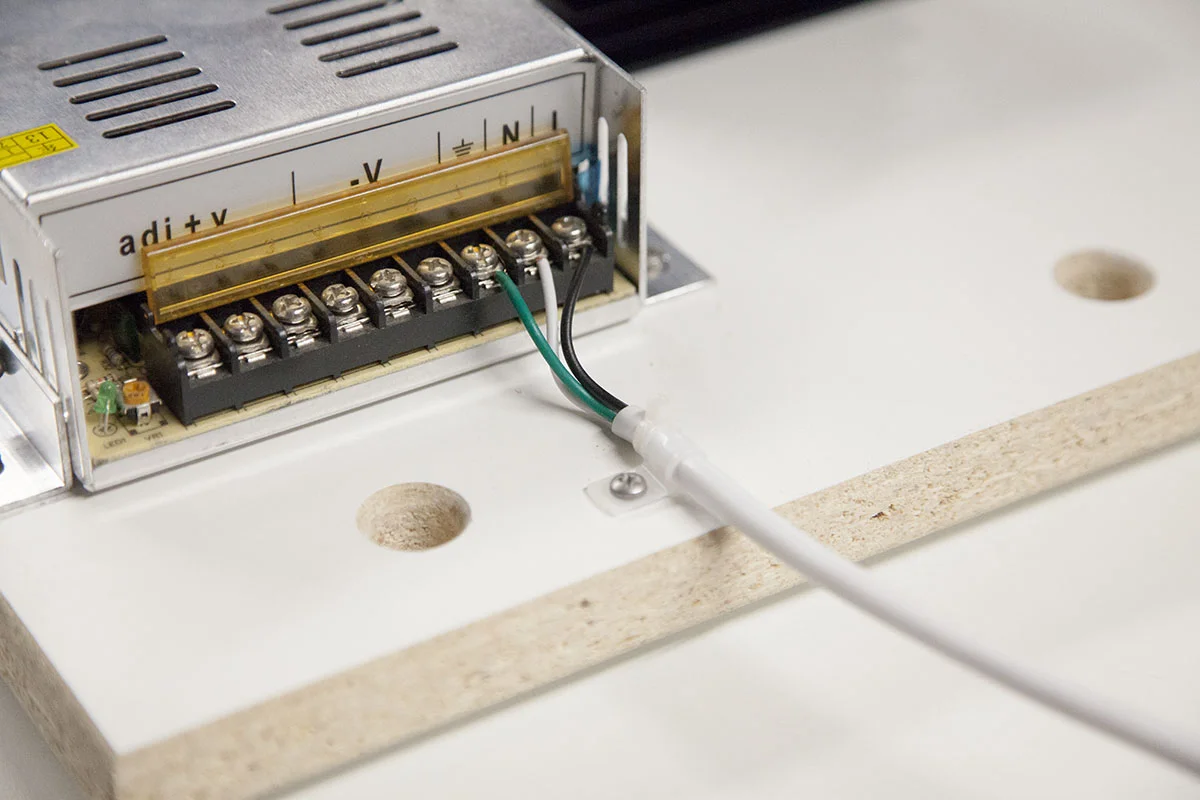

AC Power

I attached a grounded power cord to the three terminals marked Ground, Neutral, and Line.

Be sure to secure the cord with a cable clamp.

Pulse Generator Power

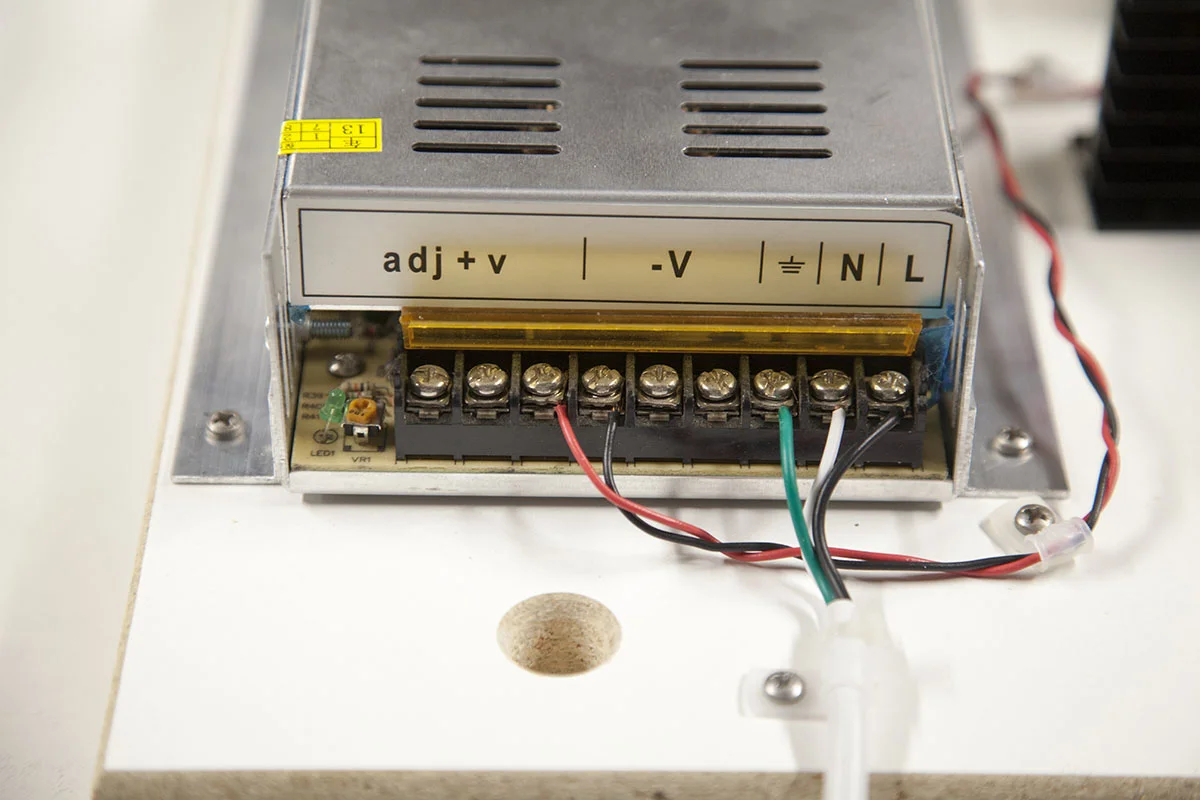

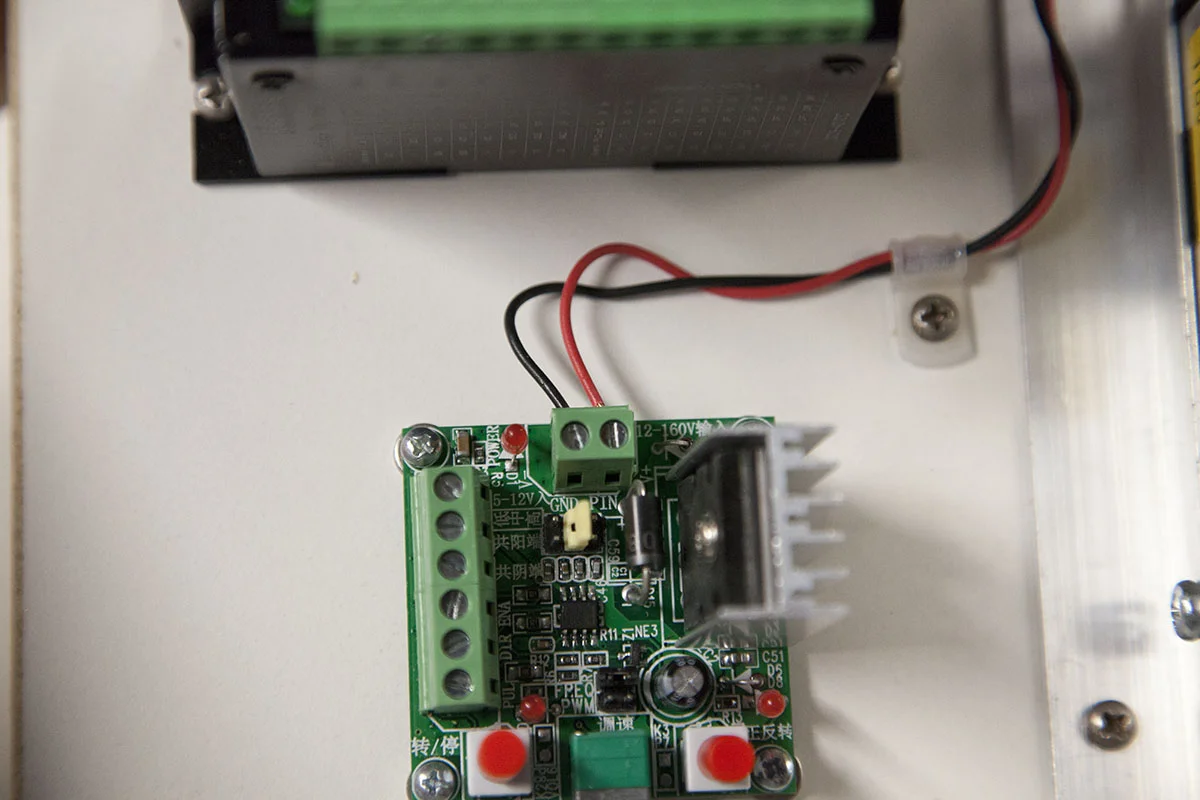

Wire the power to the pulse generator as shown here.

Be sure to use some cable clamps to secure the wires.

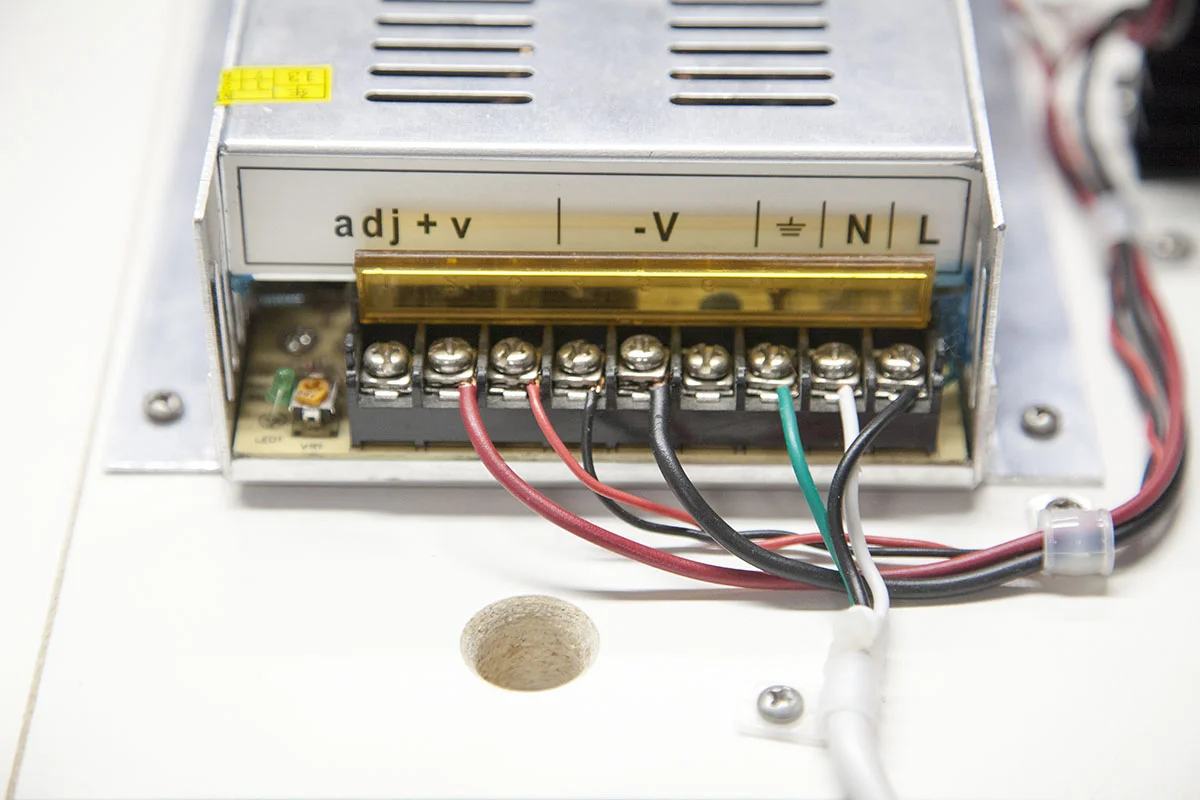

Driver Power

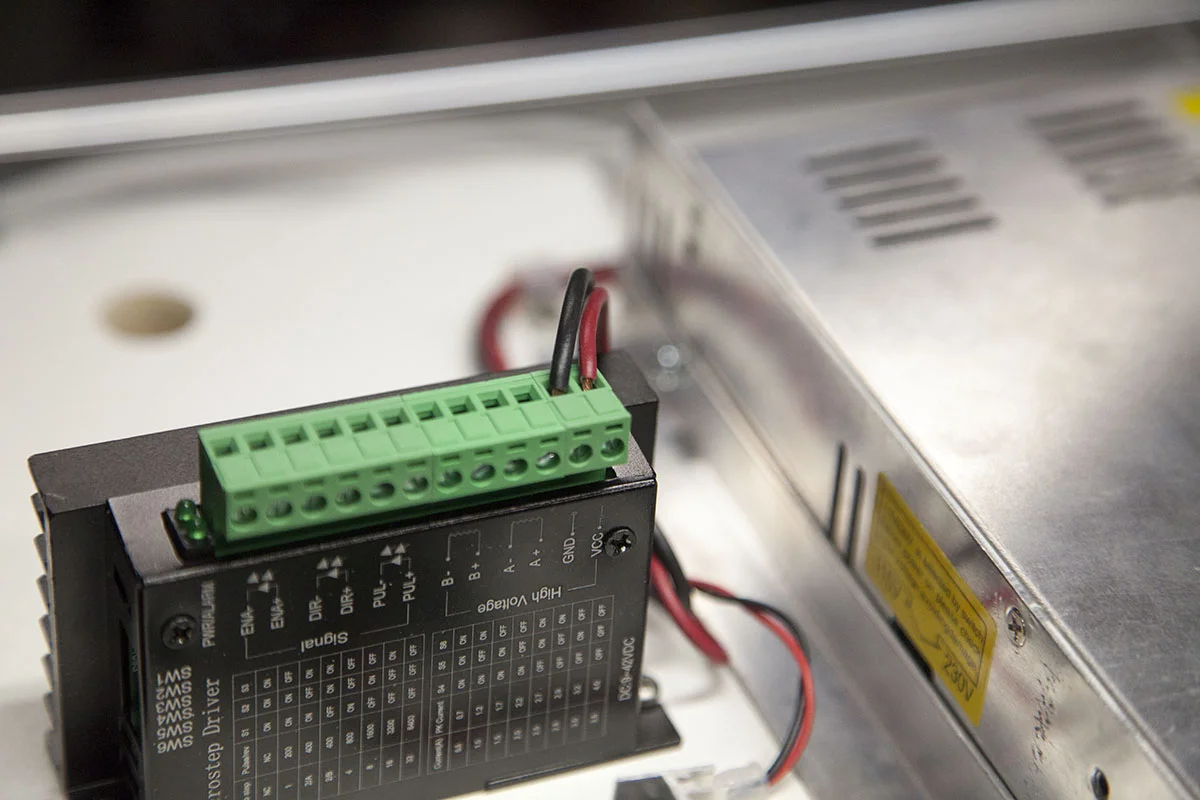

Wire the power to the stepper motor driver as shown here.

Be sure to use some cable clamps to secure the wires.

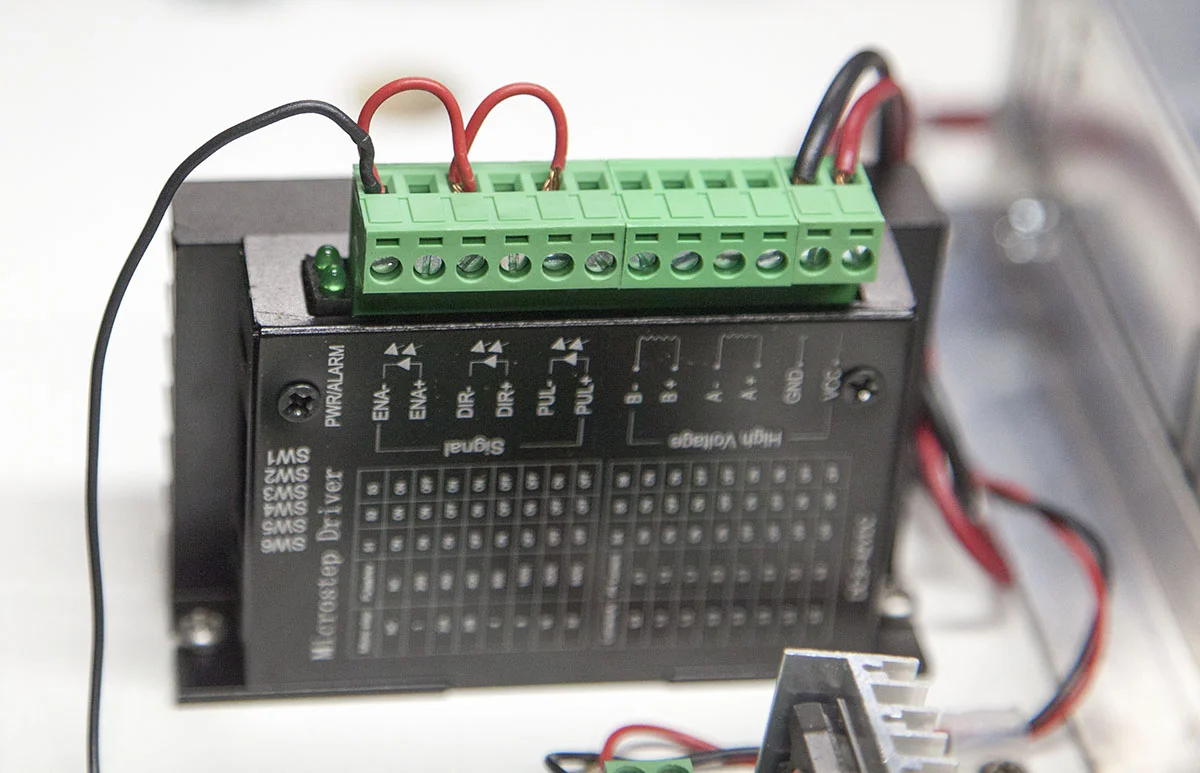

Signal Common

Add a jumper between the ENA-, DIR-, and PUL-. Run a wire from these jumpers to the common cathode terminal on the pulse generator as shown.

Wire Resistors

Add a 1K resistor to the ends of three wires.  Cover with some heat shrink tubing.

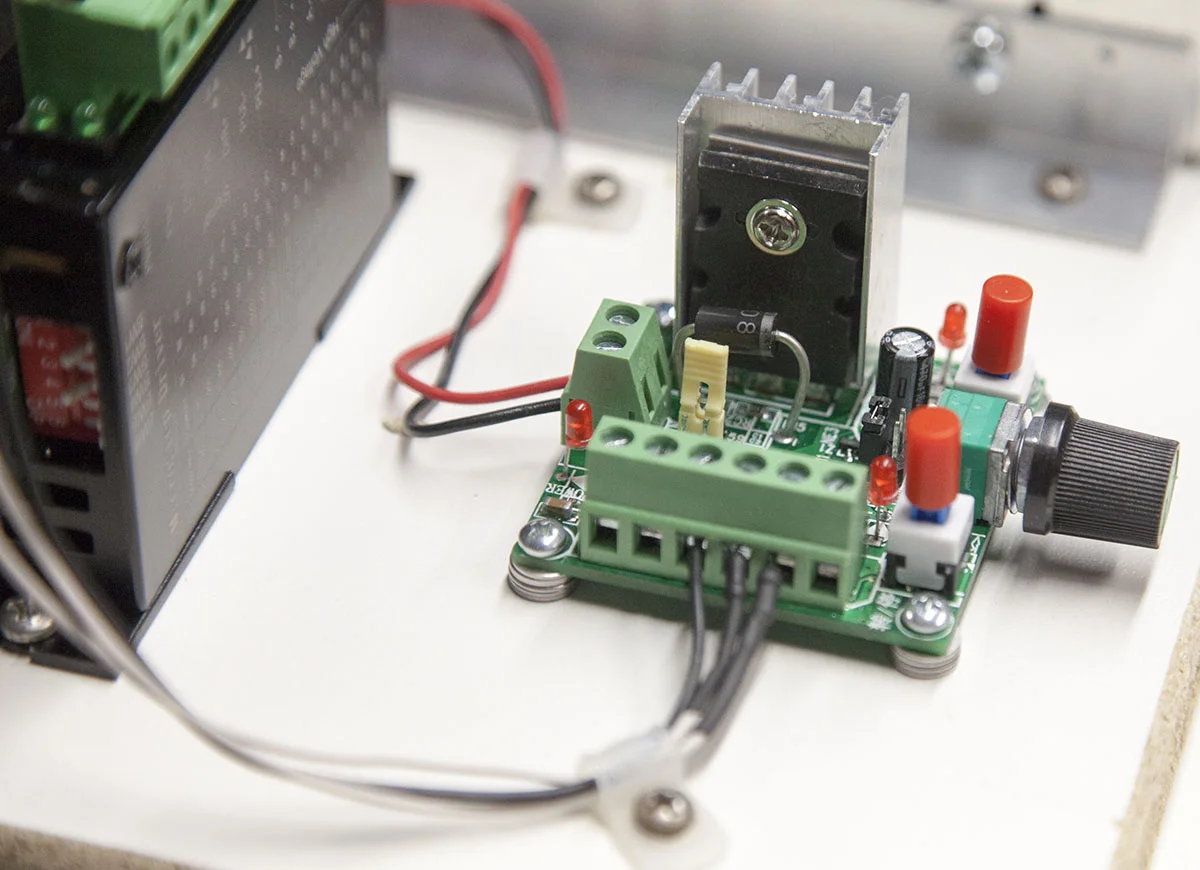

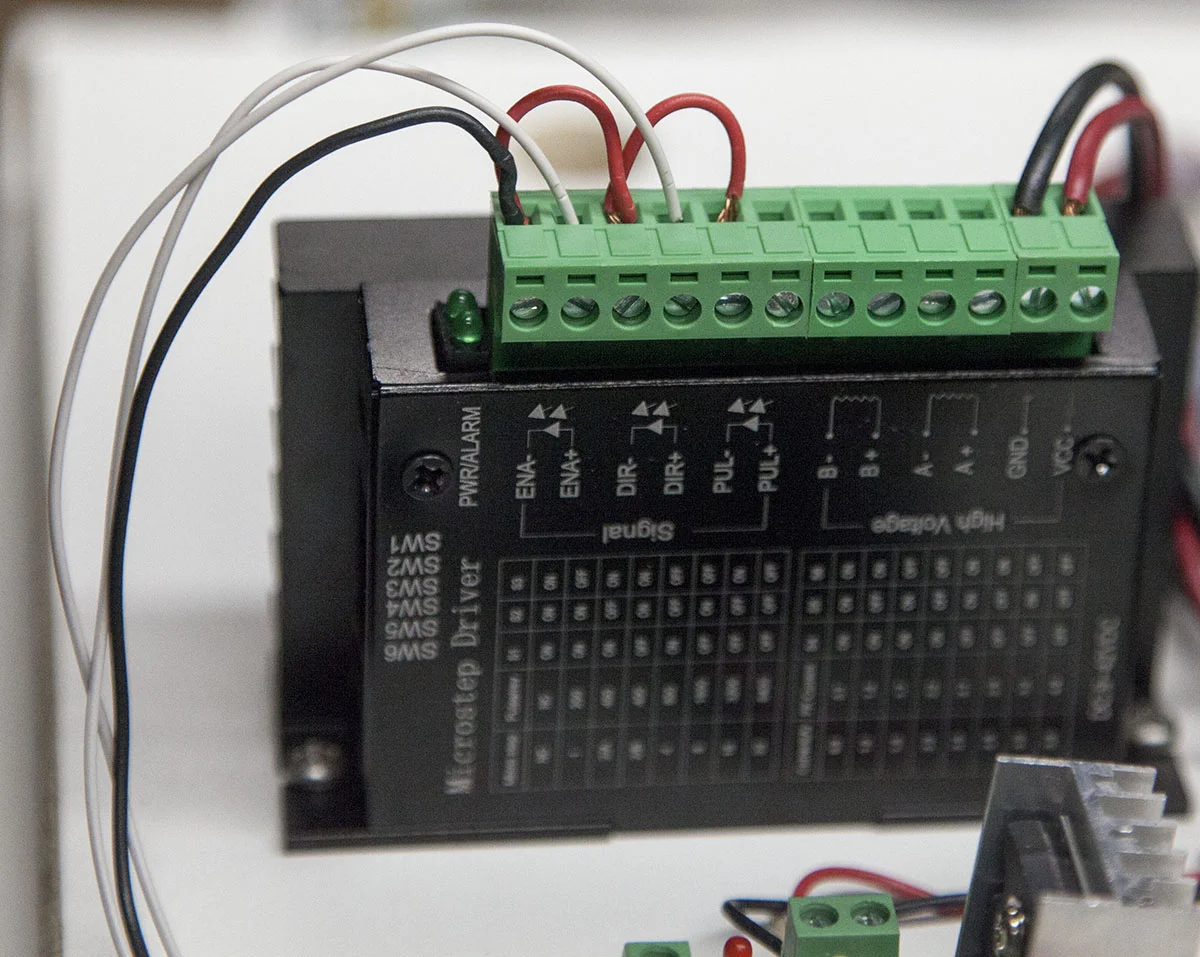

Wire Enable Signal

Add one of the resistor wires to the to the ENA+ on the motor driver and the ENA terminal on the pulse generator.

Wire DIR Signal

Add one of the resistor wires to the to the DIR+ on the motor driver and the DIR terminal on the pulse generator.

Wire Pulse Signal

Add one of the resistor wires to the to the PUL+ on the motor driver and the PUL terminal on the pulse generator.

Wire Motor Leads

Connect the four motor leads on the driver to a four position terminal block as shown here.

Add a Motor Connector

You can wire your motor connectors to the terminal block, or you can add a connector.

Here I wire a 9-pin connector to the terminal block.

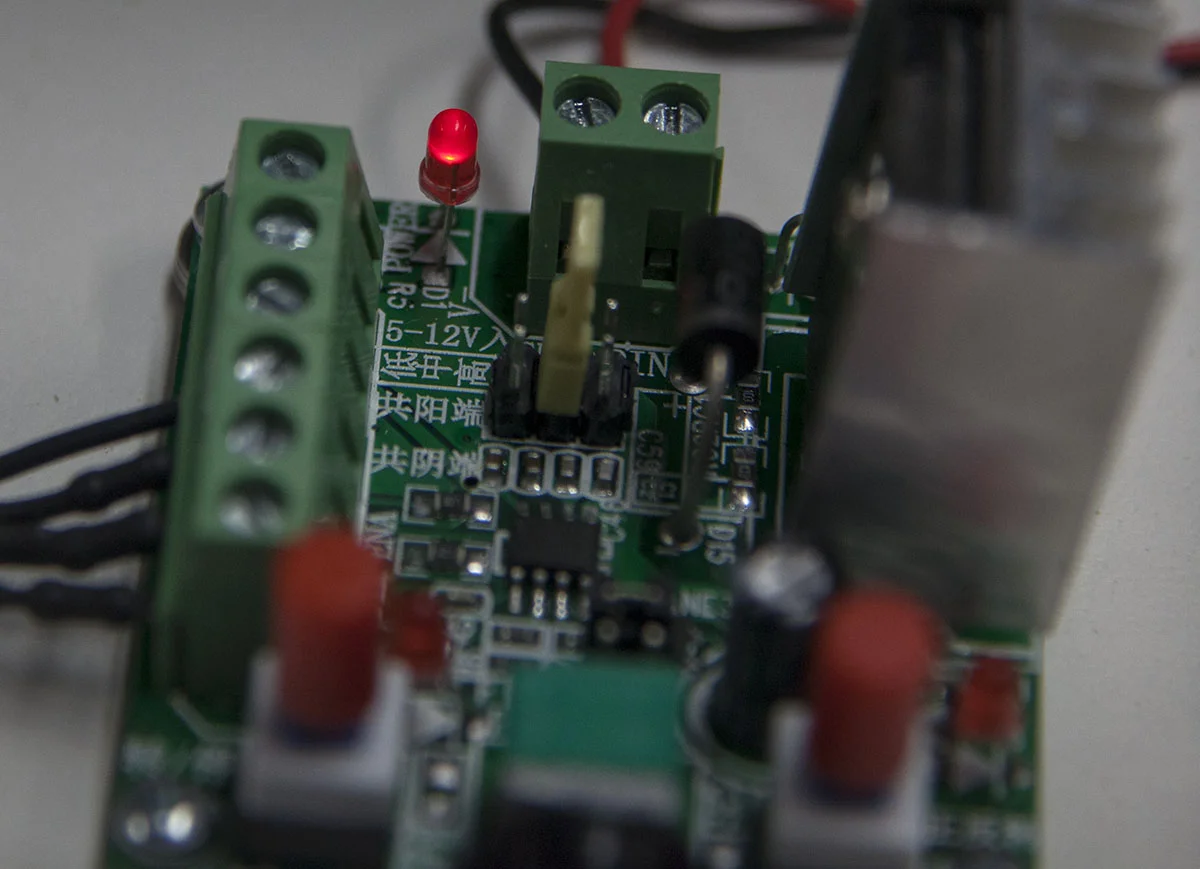

Power LED

The power LED lights when power is applied tot he pulse generator.

Speed Control

Use the know to adjust the speed of the motor.

  • Counter Clockwise = Slow
  • Clockwise = Fast


To turn on the driver and start the motor moving, push the left button down. The red LED next to the button will light when enabled.


Push the right button to change the direction.



Some things to keep in mind.  The pulse generator does not have acceleration of deceleration curves so it is fairly easy to stall the motor at high speeds.

Here is the Stepper Motor Tester in action:

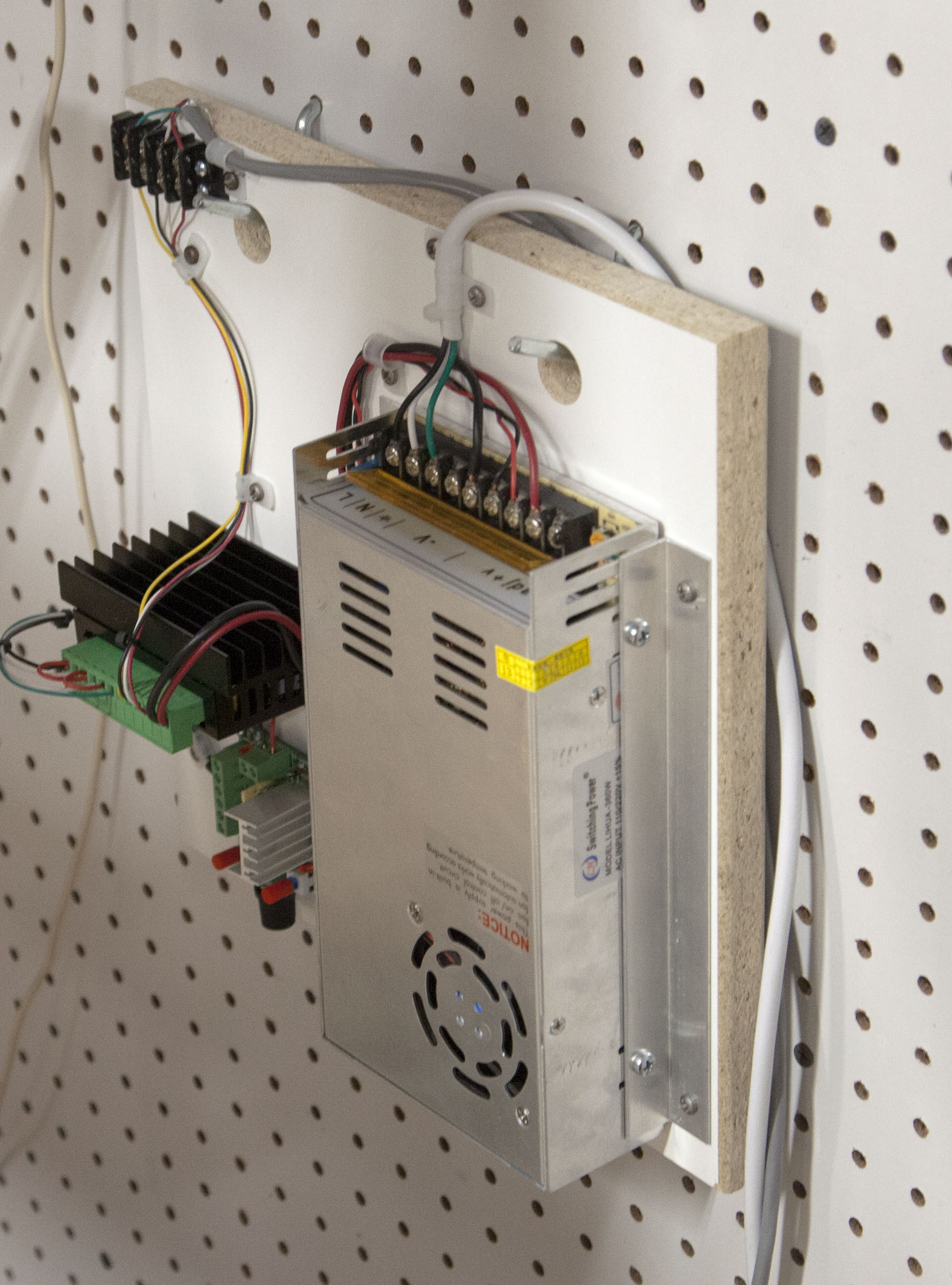

Here is the stepper motor tester hanging on a pegboard wall.
