In this section we will connect your breakout board to the UC300ETH.

Step 1 - Connect the IDC cable to UC300ETH.

Connect the IDC 26 end of the cable to the UC300ETH LPT3 connector as shown here.

Step 2 - Connect the DB25 Connector

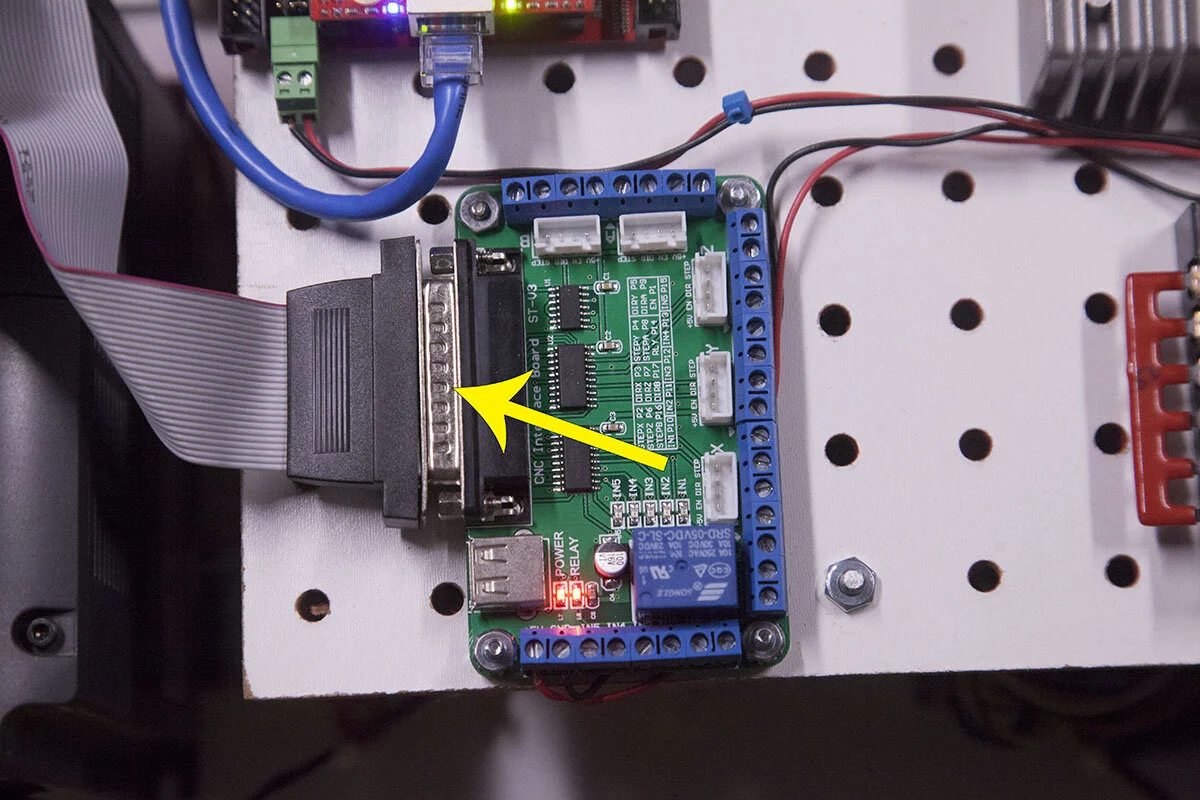

Connect the DB25 end to the breakout board as shown here.

Step 3 - Secure the Cable

Here I used a couple paper clips for cable management.



Conclusion

With the breakout board connected to your UC300ETH, you will be able to easily connect accessories to your machine.
