The AirExchanger Top Base

The top base sits on top of the spacers, and below the spindle mount. It is made from a piece of clear polycarbonate .093” thick.

Drawing Files

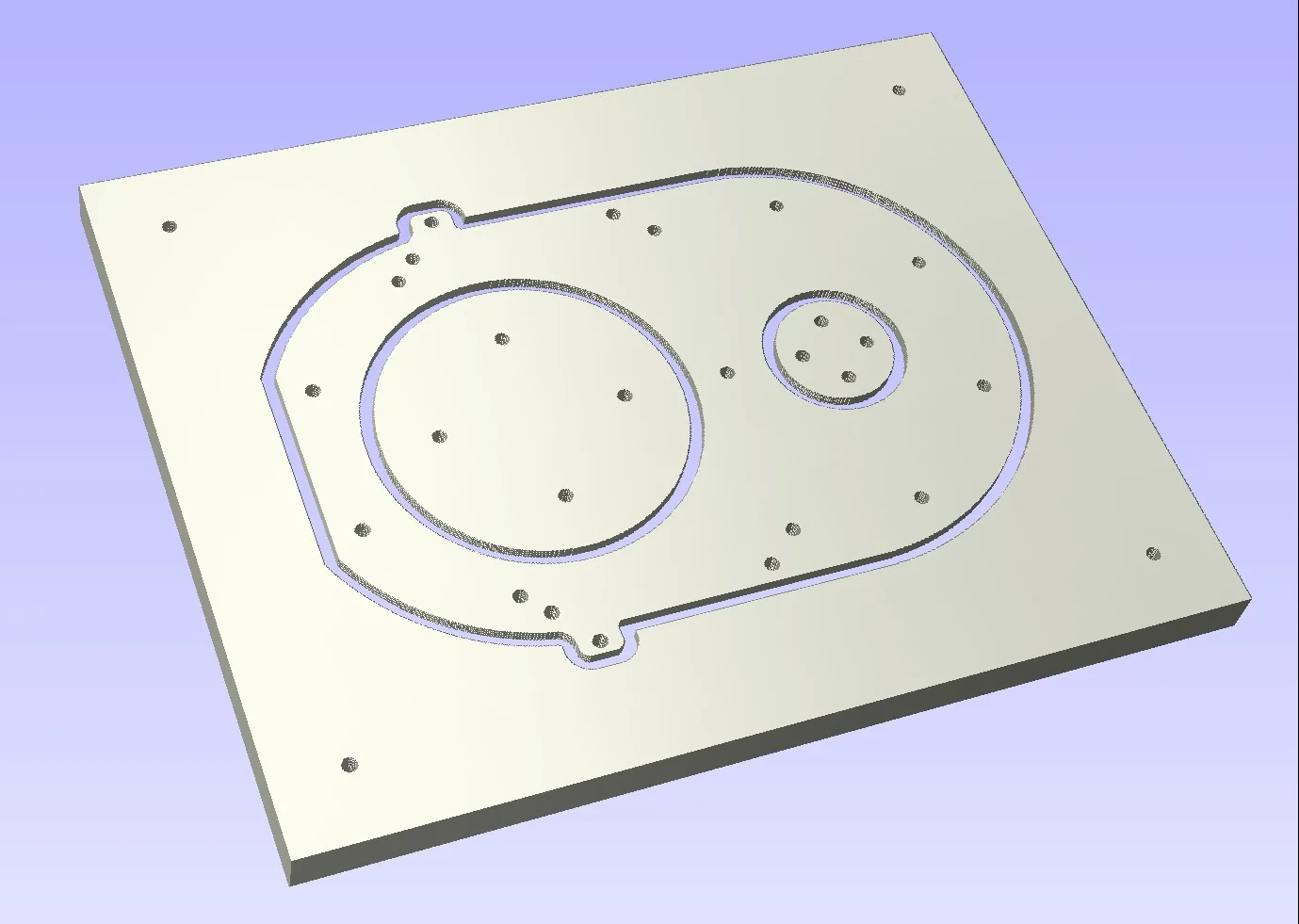

Here is the drawing file I used to import into my CAM software.

It is in the EPS format as that is what I used to move the shapes from CorelDraw to Vcarve Pro.

AirEchanger Top Base Drawing File


I used a piece of 8” x 10” x .093” polycarbonate sheet stock. These can be purchased at any home center.

In addition to the plate stock you will need a piece of waste stock. (see below)

You will also need 23, #6-32 x 5/16” machine screws.

Feeds and Speeds

I used a 1/8” up-spiral two flute end mill with a 5/8” cutting depth.

  • Feed: 50IPM

  • Plunge: 35IPM

  • RPM: 13000

  • DOC: .03”

Note that I also do a full finish path at 18000 RPM. If your machine can control the speed just set it to 15000 RPM for all the cuts.

Step 1

Shown here I have secured my sheet stock and backer board with a series of table clamps.

I used a piece of MDF, 8” x 10” x 1/2” as a backer board. Notice that this is the same size as the sheet stock.

Step 2

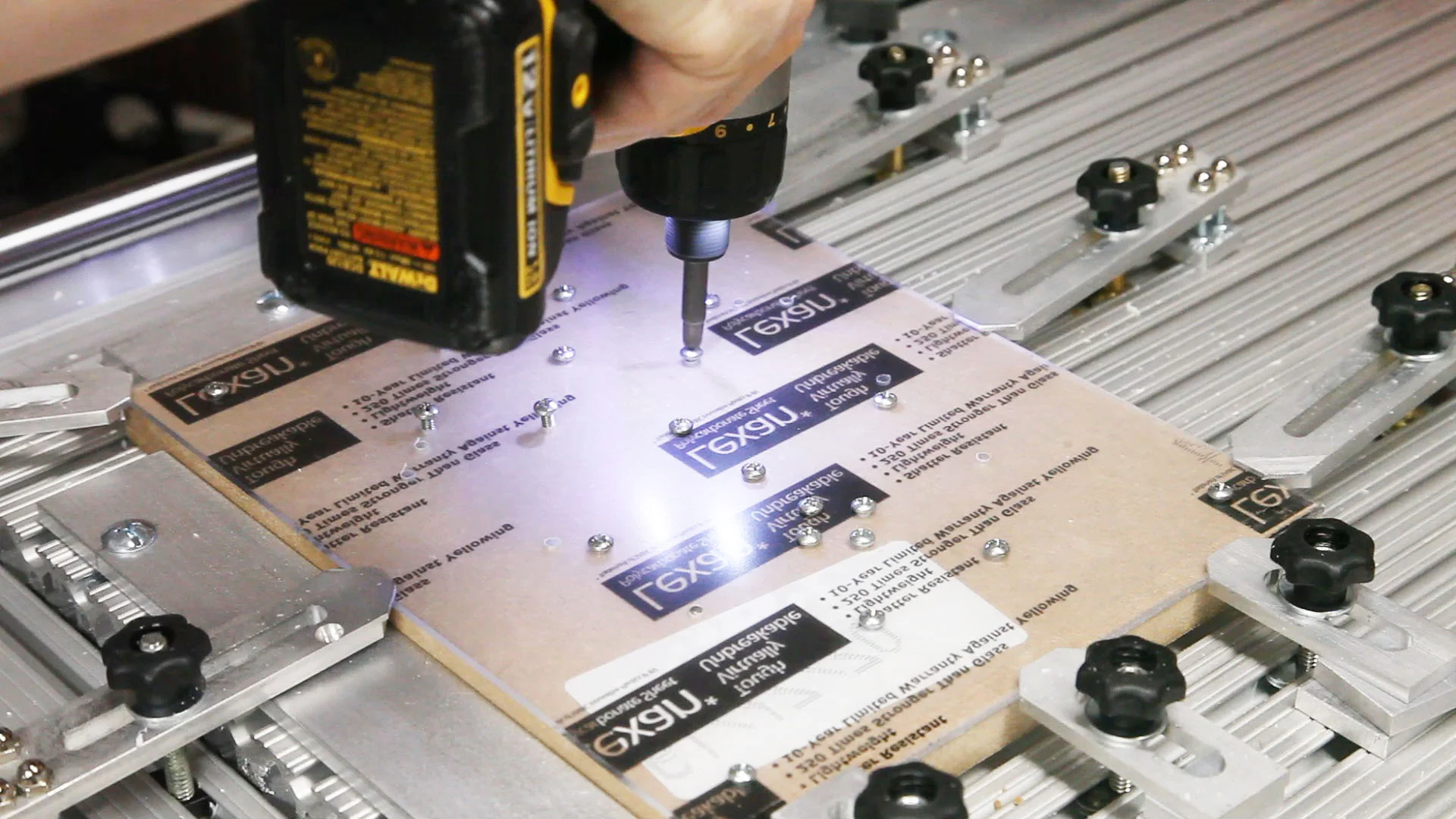

I start by drilling the 29 mounting holes through the sheet stock.

Step 3

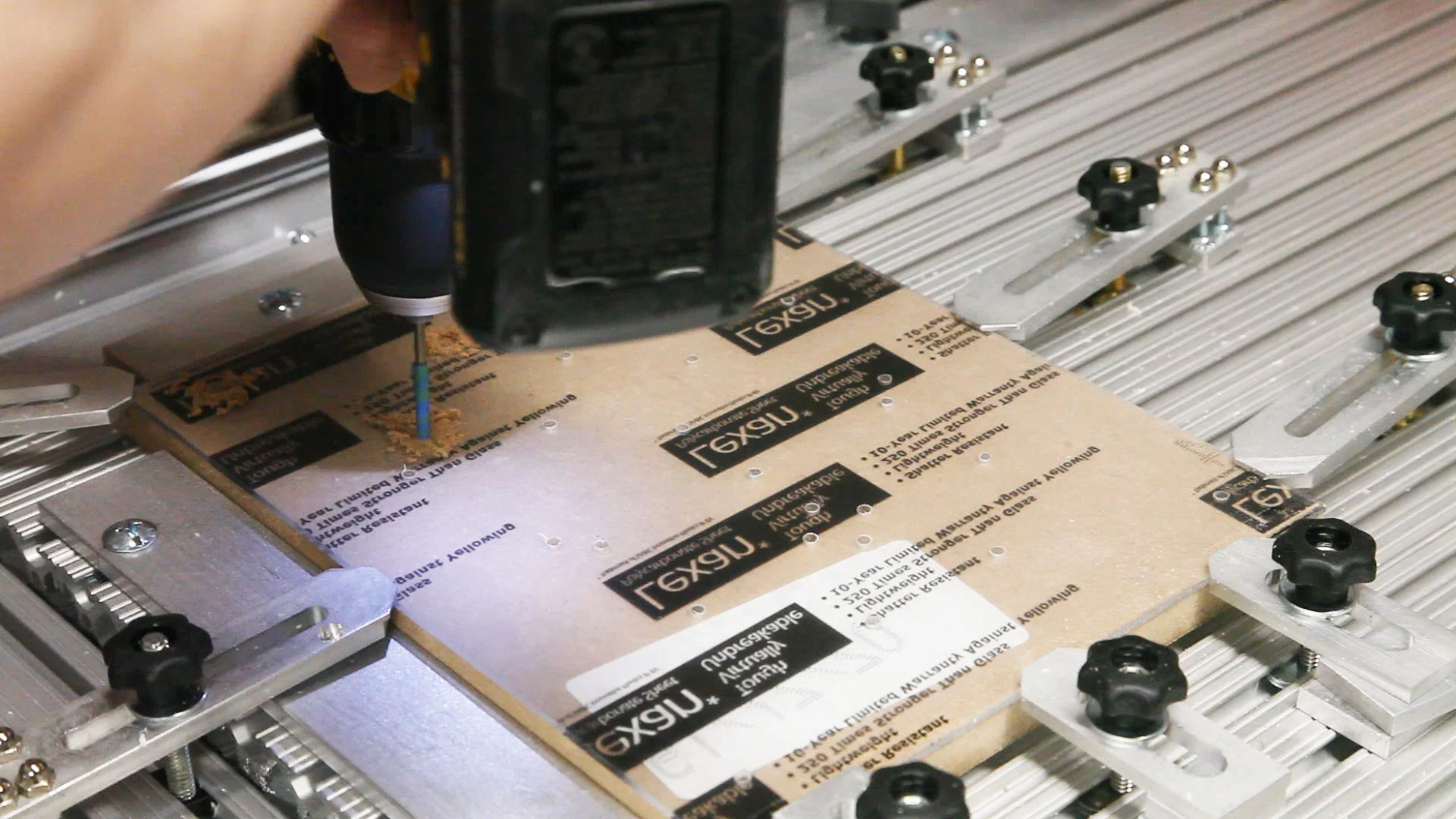

I use a 7/64” drill bit to drill pilot holes into backer at each hole.

I add a piece of tape to set the depth I need to drill. Use one of the 5/16” machine screws to help.

Step 4

A 6-32 x 5/16” machine screw is snugly inserted into the holes shown below. These will hold the base and cutouts in-place while it is cut.

Place the 6-32 x 5/16” machine screws into the holes shown here.

Don’t place screws into the holes that are not marked or your end mill may crash into the screw heads.

Step 5

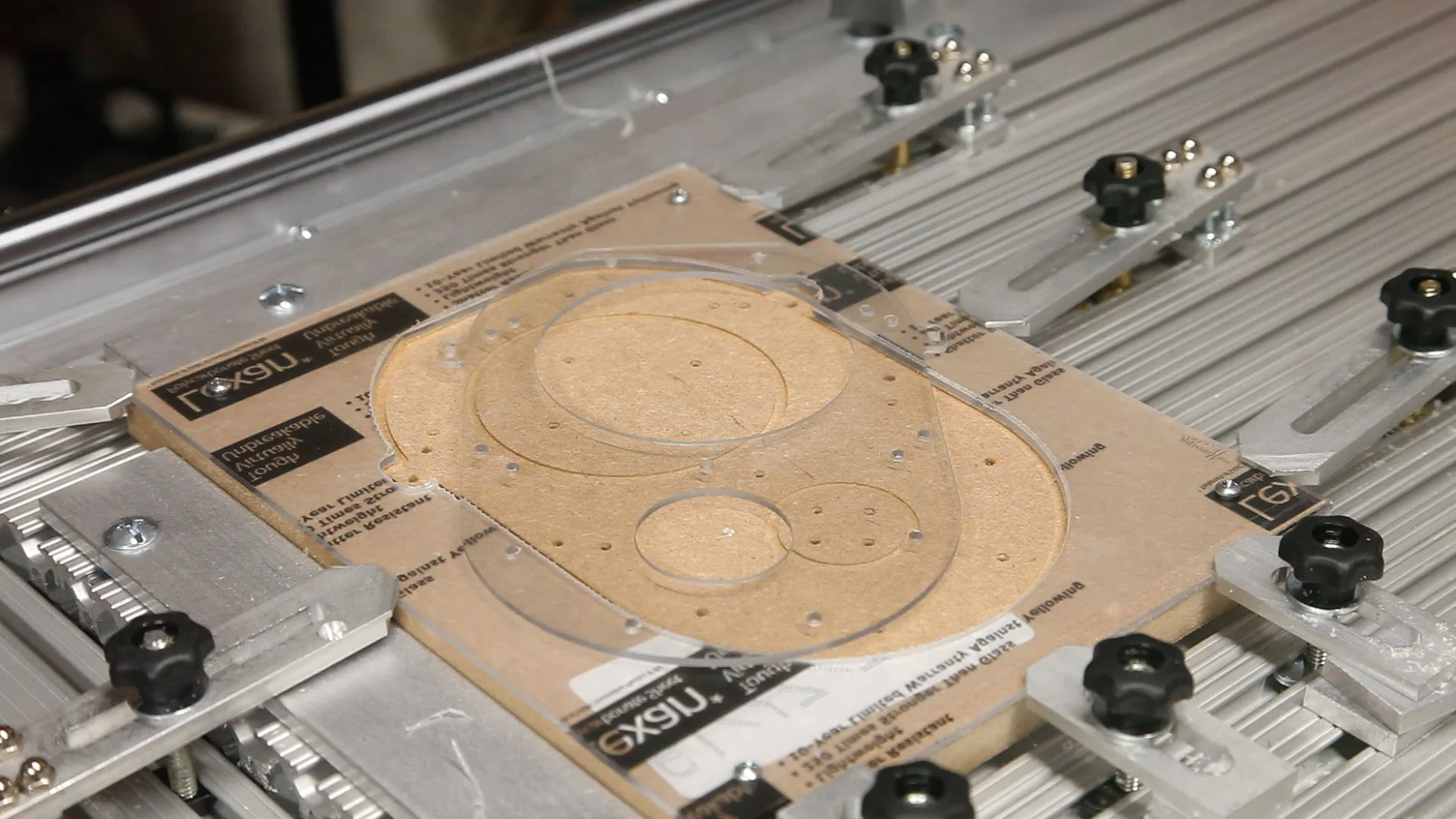

I then machine the inside cutouts and outside profile.


I remove the protective cover and use my finger nail to remove any burrs.

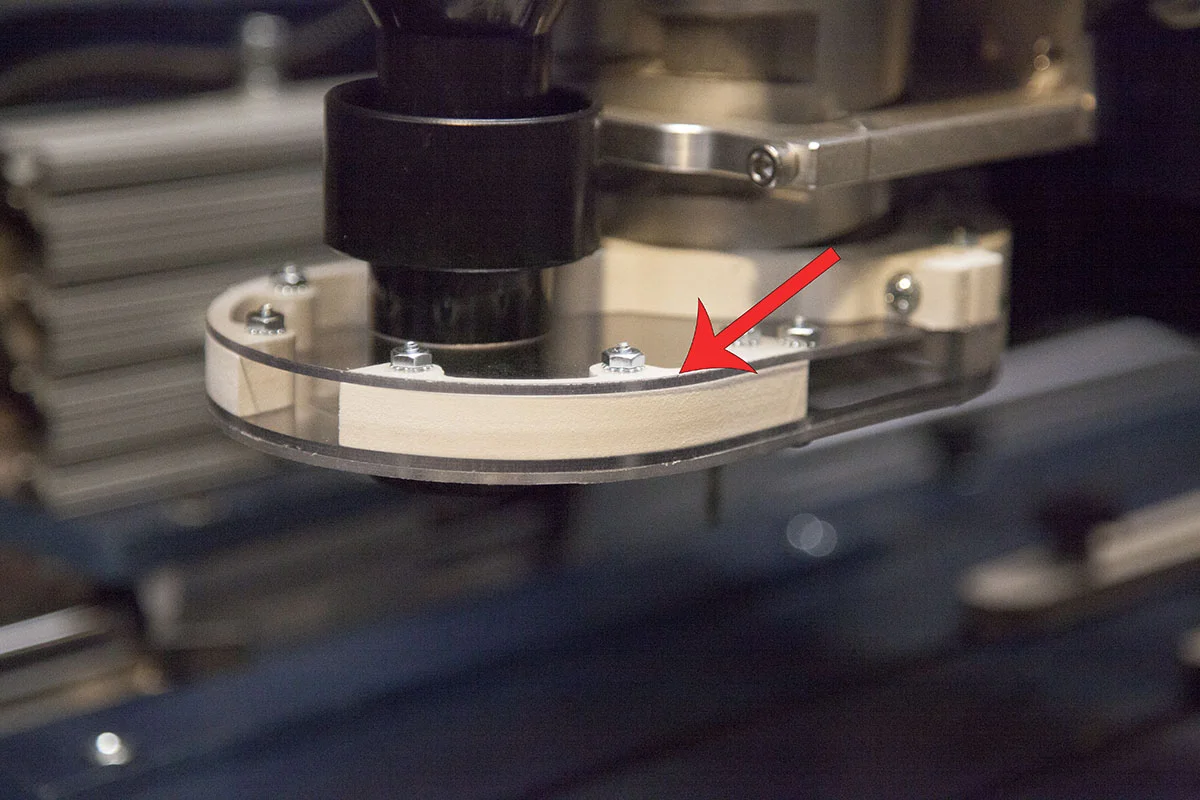

The Finished Top Base

Your AirExchanger top base is complete. Set aside until you start the AirExhanger assembly process.
