In this article, I am going to show you how to make the eight gantry risers out of aluminum.

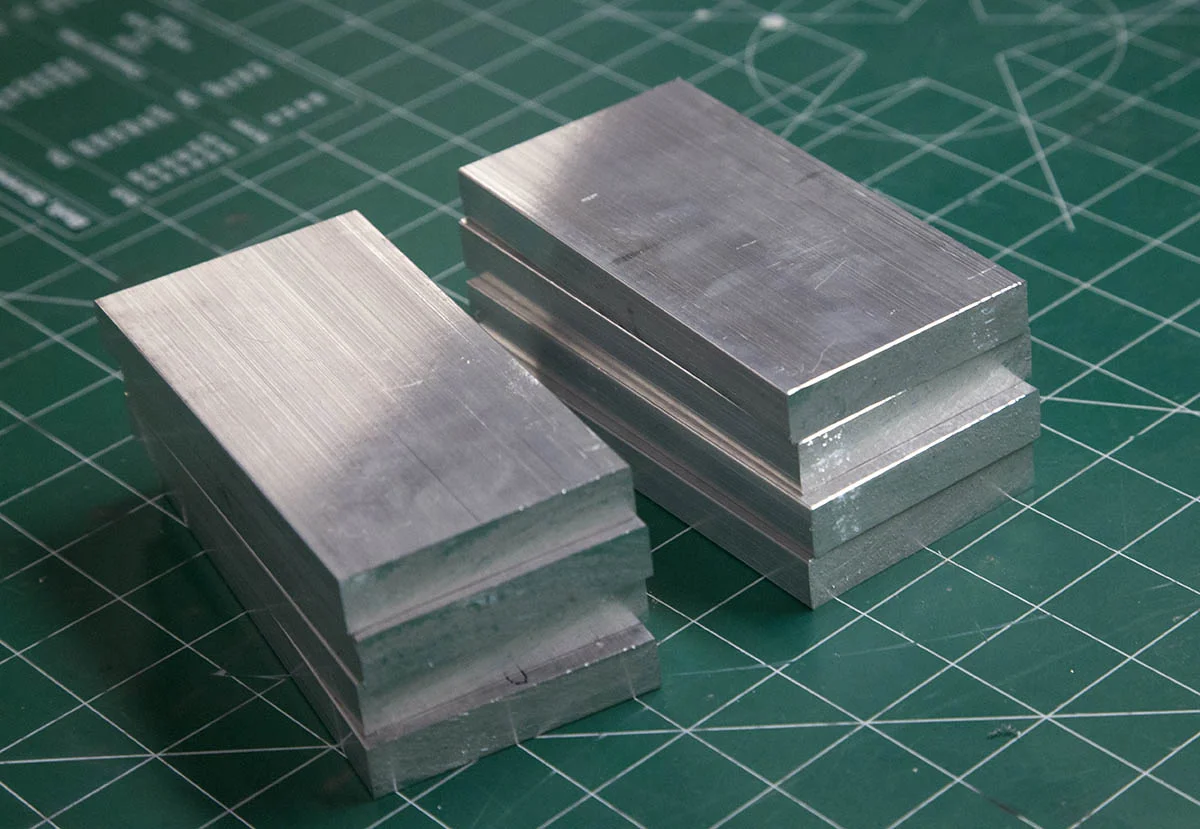

The gantry risers are made from eight pieces of 2” x 5” x 1/2” stock.

At the time I started this portion of the build I did not have any 2” x 5” stock on hand. I did have some 2.5” x 5” x 1/2” stock so I decided to use that.

What could possibly go wrong?

Let’s start by looking at the template attached to a 2” x 5” piece of stock.

You need to drill seven holes and cut a corner out of each piece.

Shown here is a gantry riser cut out of piece Corian.

Here I attached the template to the larger 2.5” x 5” piece of aluminum stock. Because of the added width, I have to cut an extra 1/2” off the corner.

In addition I also have to cut an additional smaller cut from the other corner. This is needed to keep from interfering with the gantry brace we will be adding later.

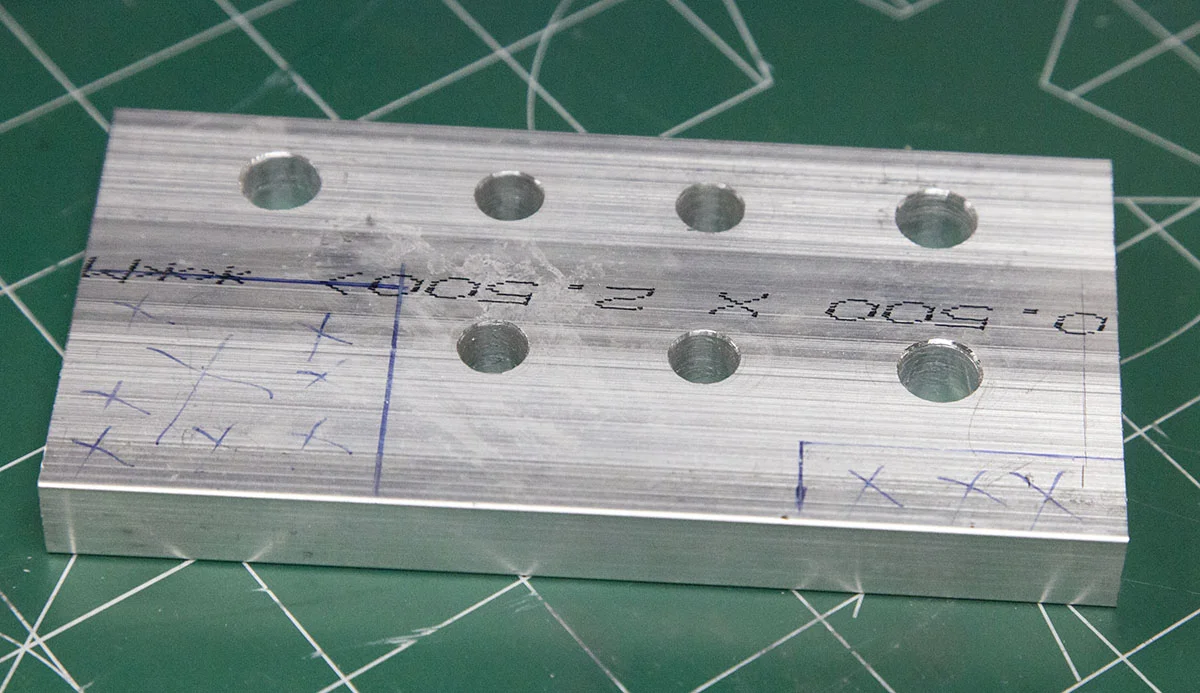

The holes were punched. All holes were drilled with a 5/16” drill bit.

The outer three holes we enlarged with a 3/8” drill bit.

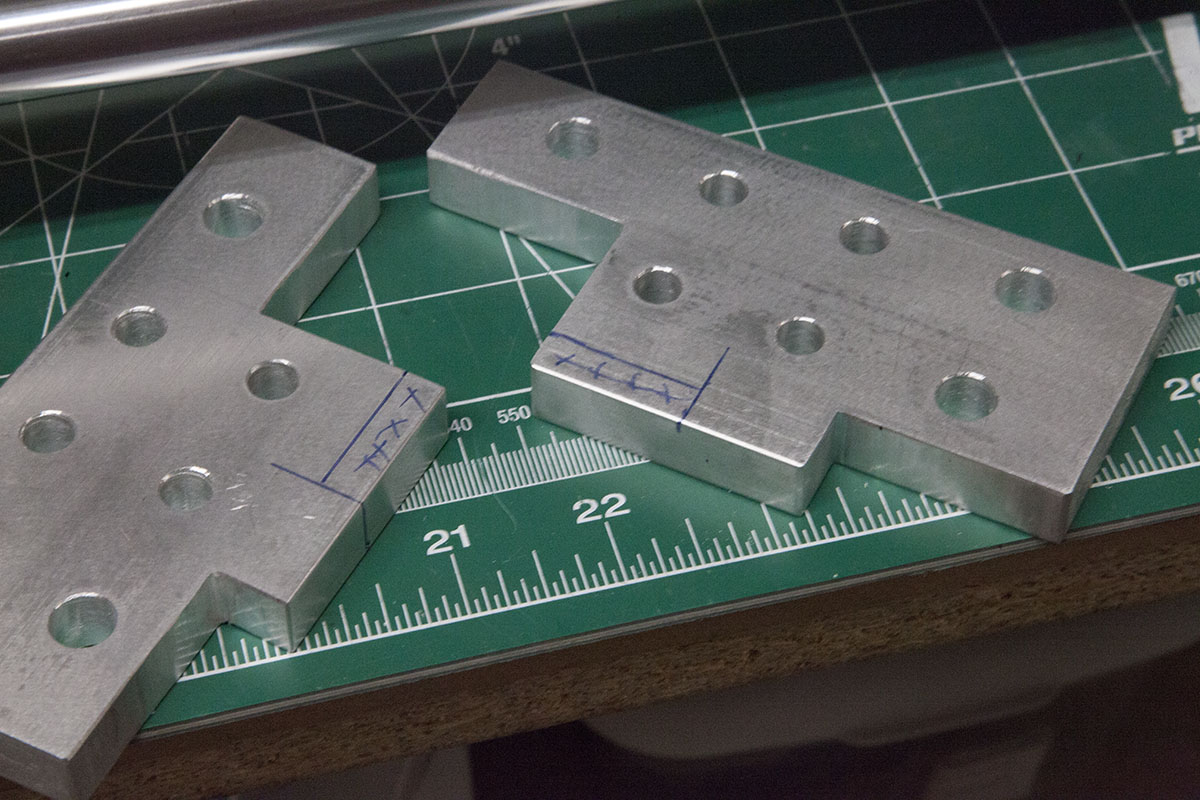

Now all that needs to be done is to cut the two corners out.

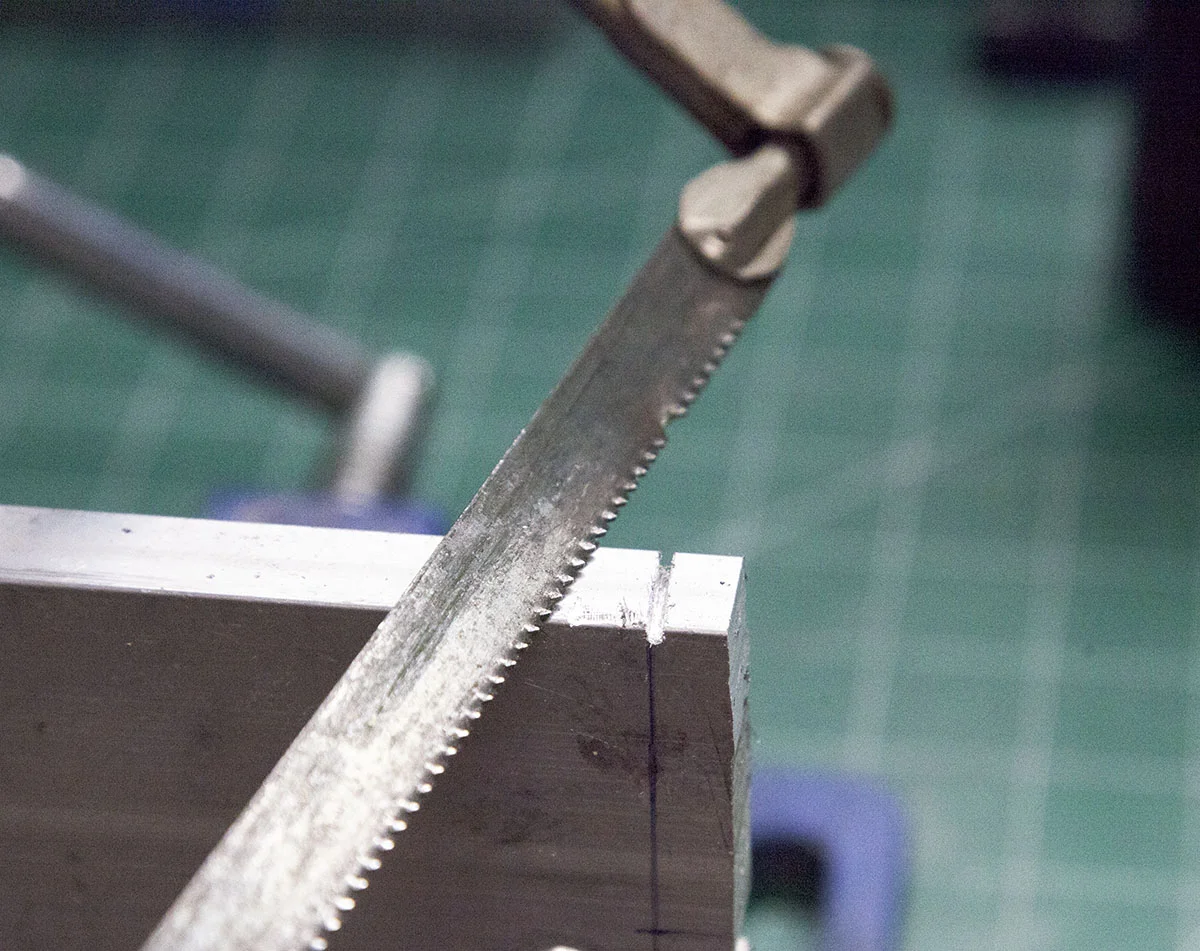

Cutting with a hacksaw

I had to say a tried. If I only had one corner on one piece of stock, this might be a slow and painful option. But, for this project, No Way.

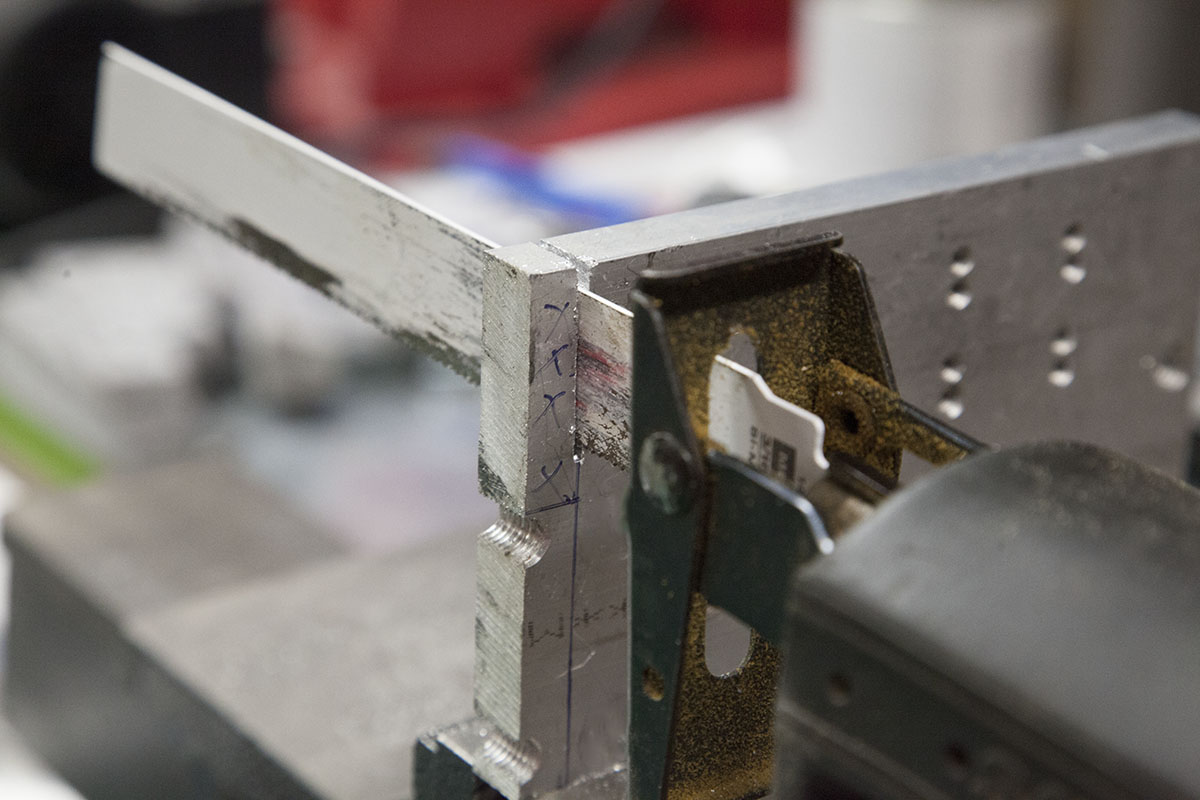

Reciprocating saw

This will work. It is a little slow but the weight of the saw does all the work.

Note this only worked with a proper full sized saw. It did not work with battery powered or any saw that has less than a 1” blade stroke

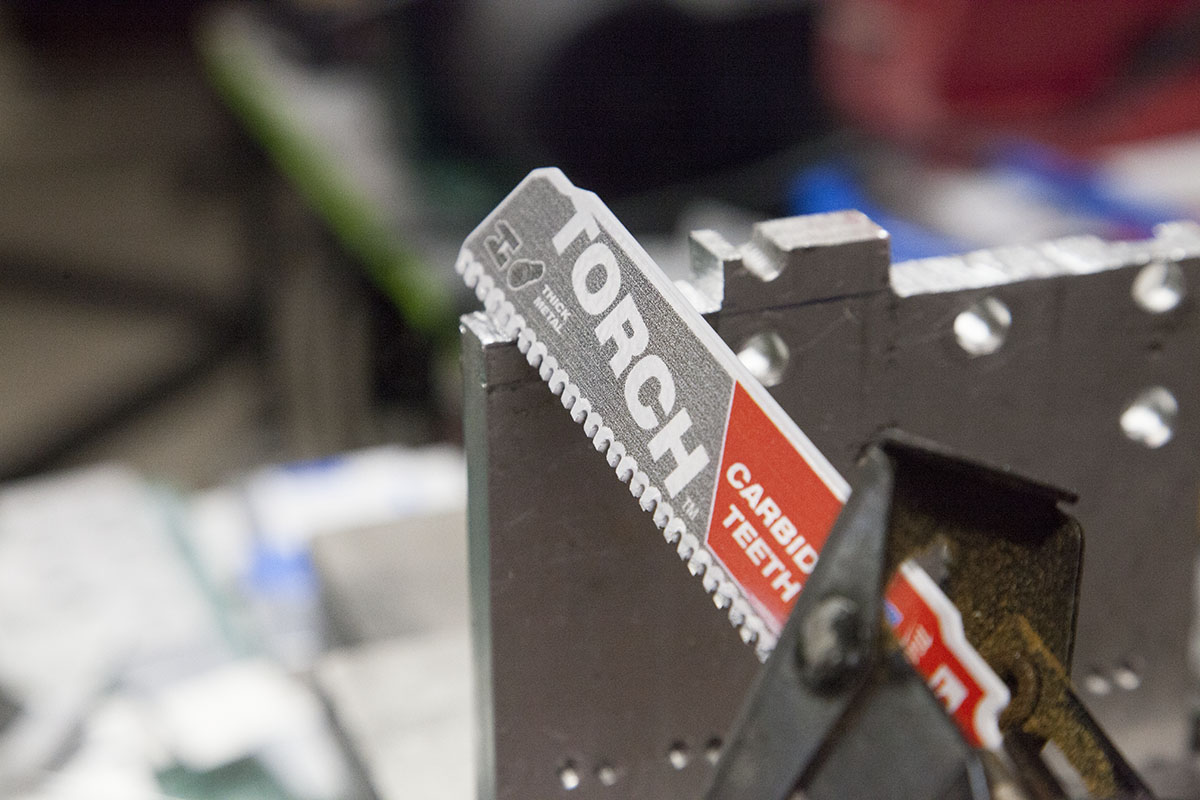

I also tried a carbide tipped blade on the reciprocating saw. Stick with standard metal cutting blades.

Hand held bandsaw

This worked surprisingly well. A little hard to control but you get better with each cut.

I am using a 10/14 TPI blade.

Note that is not one of those expensive band saws. I picked it up at Harbor Freight.

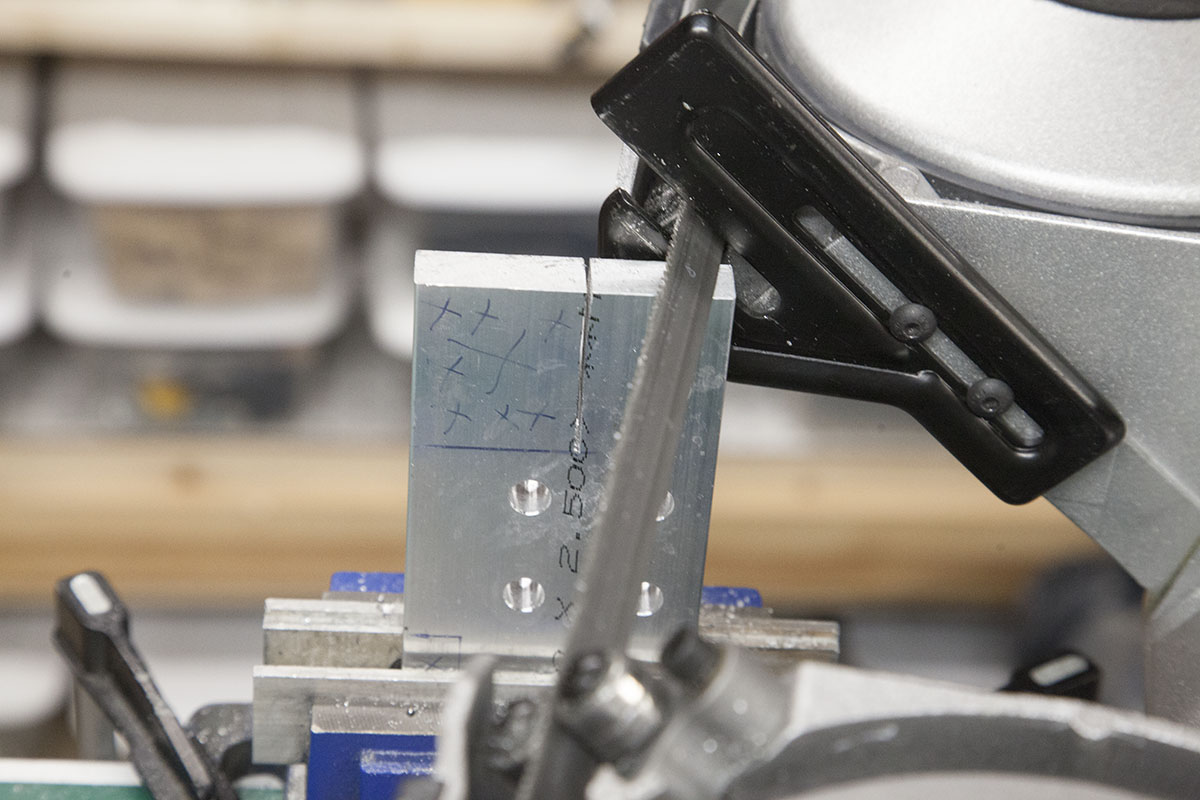

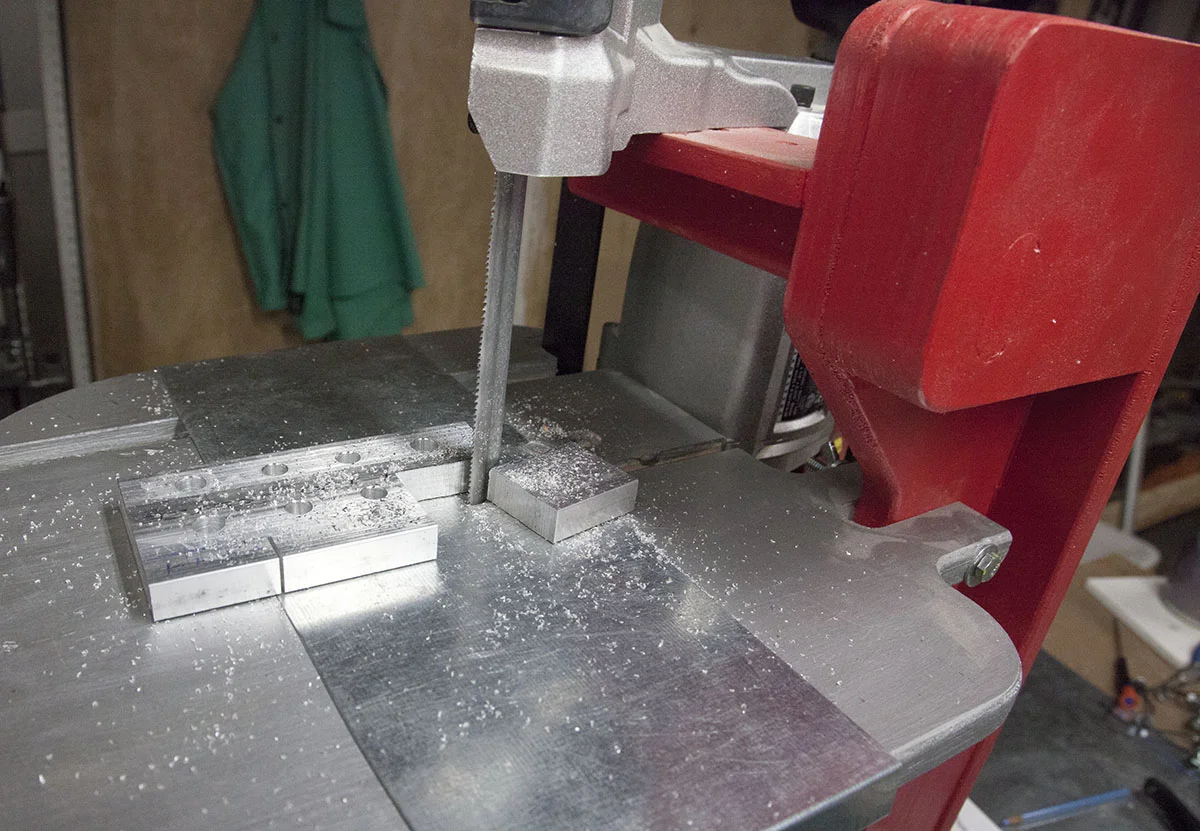

Mounted hand held bandsaw

I have a stand I made for my Harbor Freight bandsaw. It is much easier to control the cut.

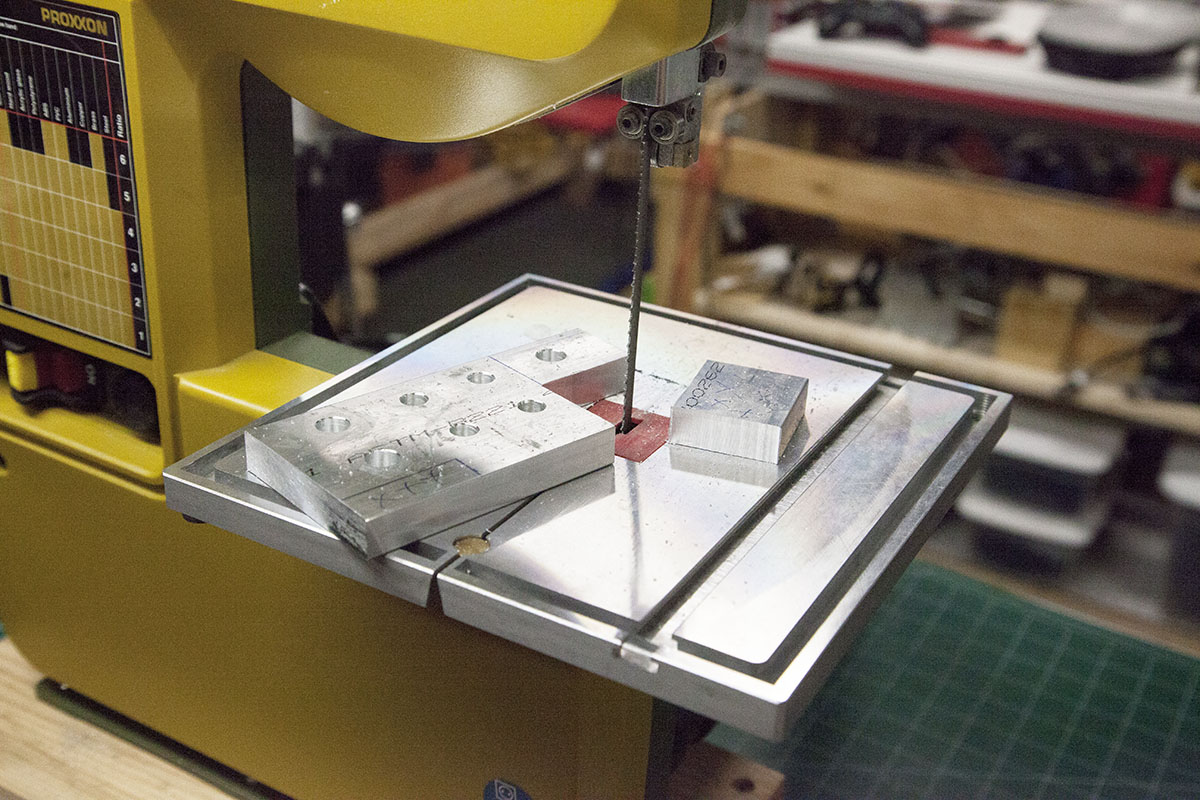

Band Saw

Shown here is a small Proxxon bandsaw. It worked well.

Any bandsaw with a bimetal 10 to 18 TPI blade will work.

I flipped the gantry over with the bottom facing up and test fit the piece.

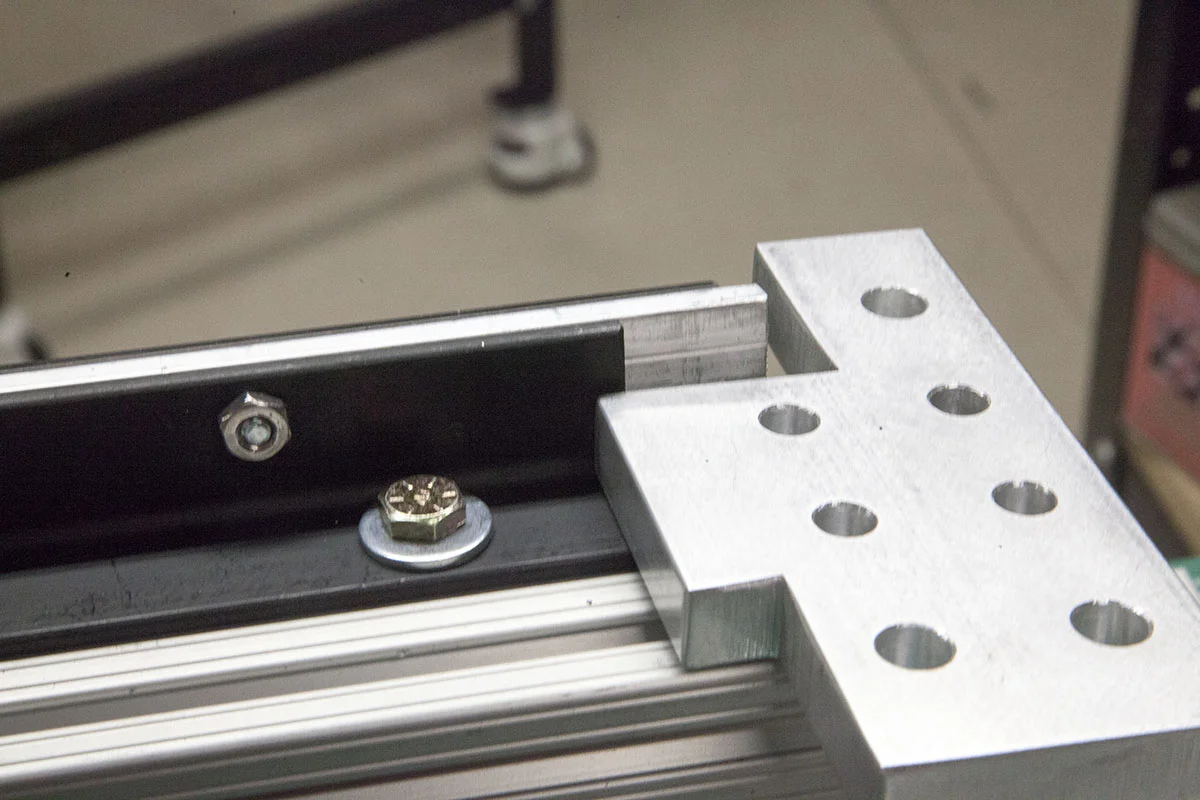

Due to the extra width it comes in contact with the steel angle supporting the rail.

I am going to have to make another cut.

This is what I had to cut.

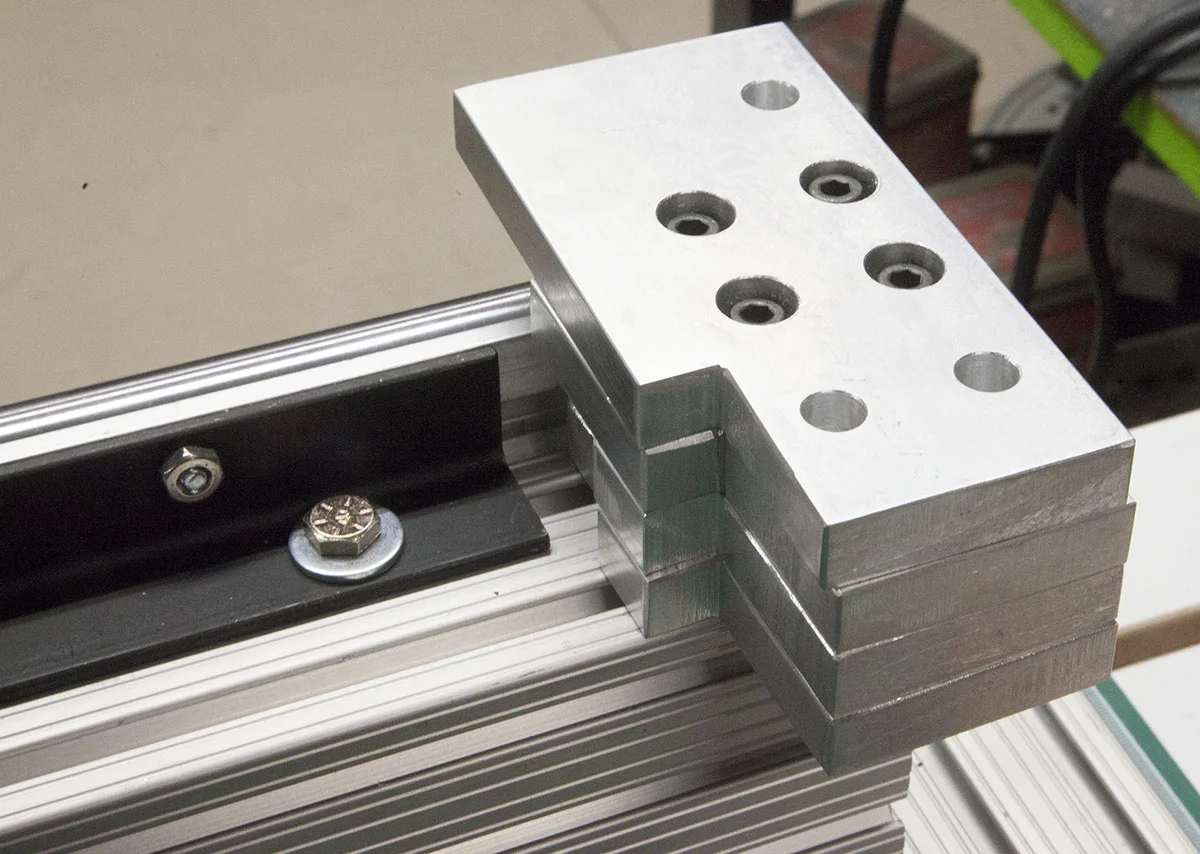

Now it fits with the extra slot cut. Note that only two of these needed to be cut for each side to clear the steel angle.

The bottom gantry riser has four pockets shown here. These are made the same way we did on the Y carriage adapter plates.

You are going to need the same washers you used on the Y carriage adapter plates. You will also need eight, 1/4-20 x 2” button head screws.

M6 Narrow Washers

1/4-20 x 2” Button Head Screws

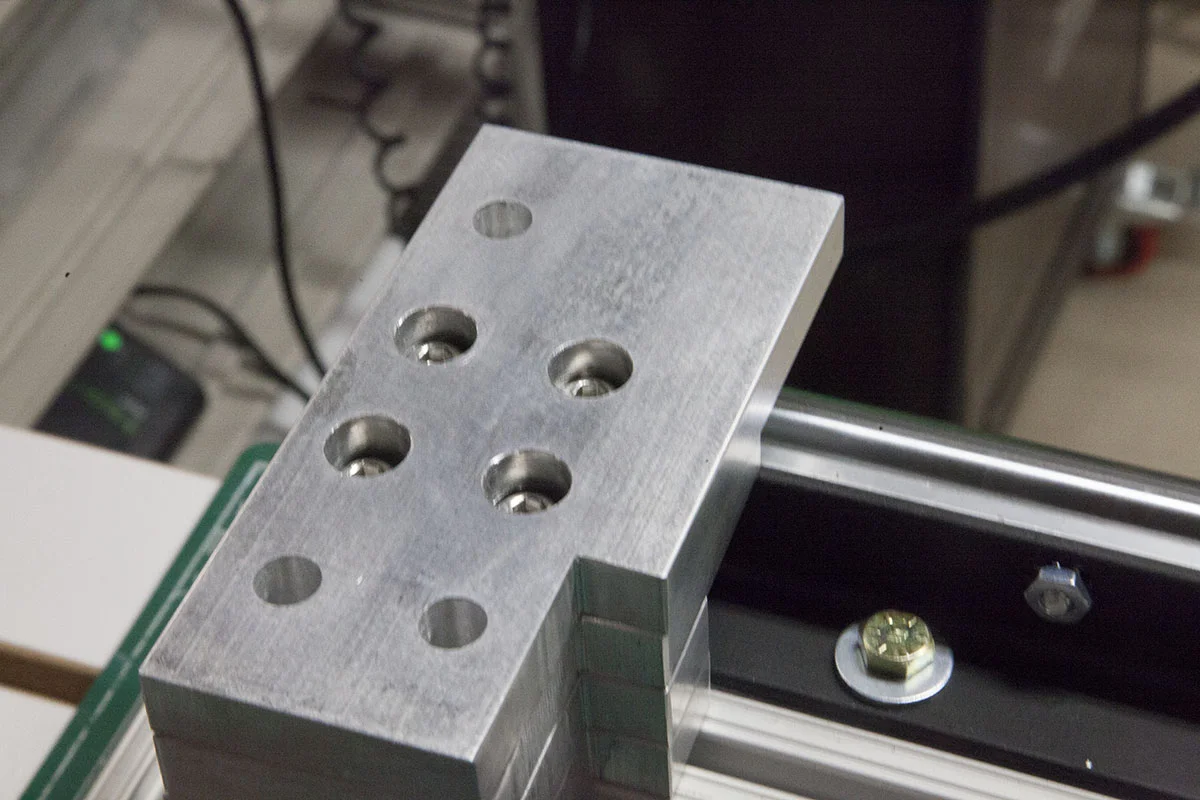

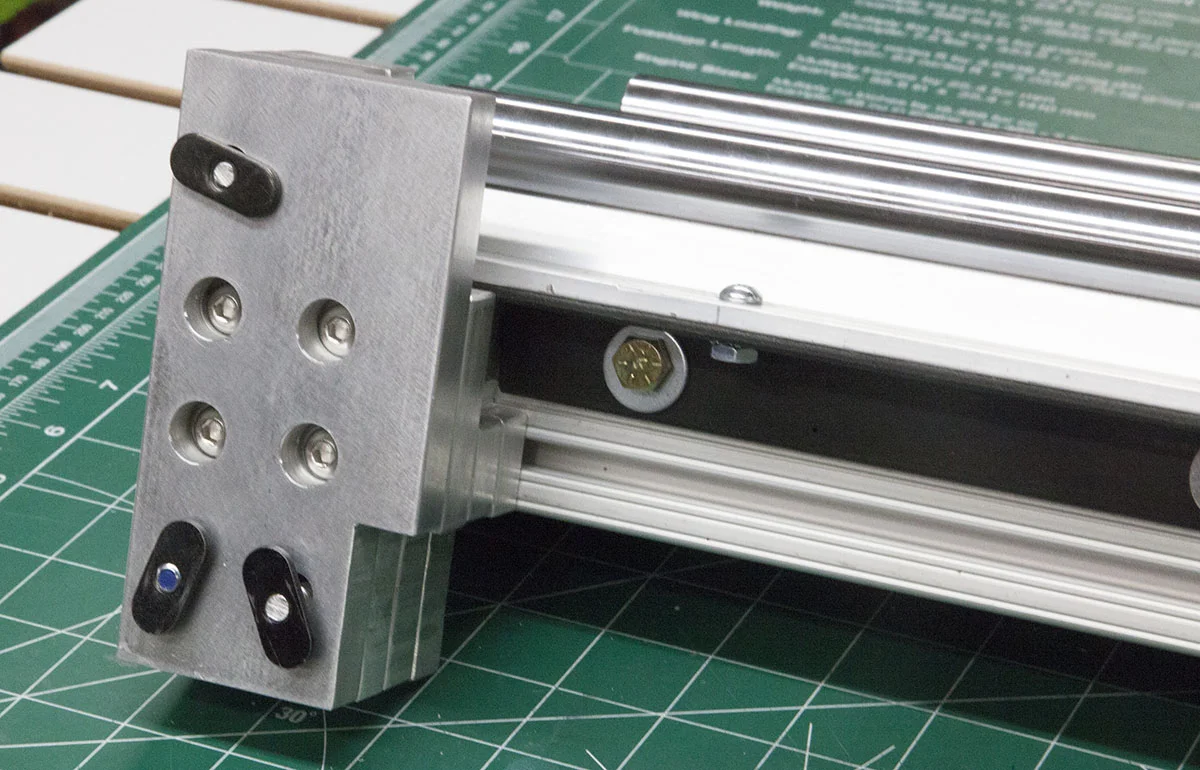

The risers are assembled the same as in the book. Mine just look a lot different do to all the cuts I had to make to fit the larger stock.

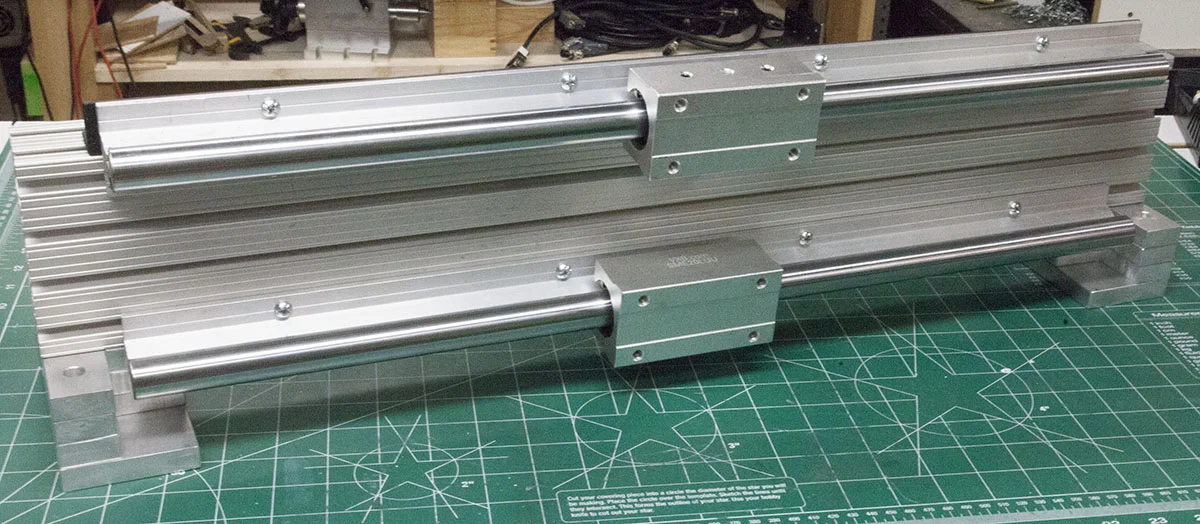

Before proceeding, slip the two extended trucks over the rails.

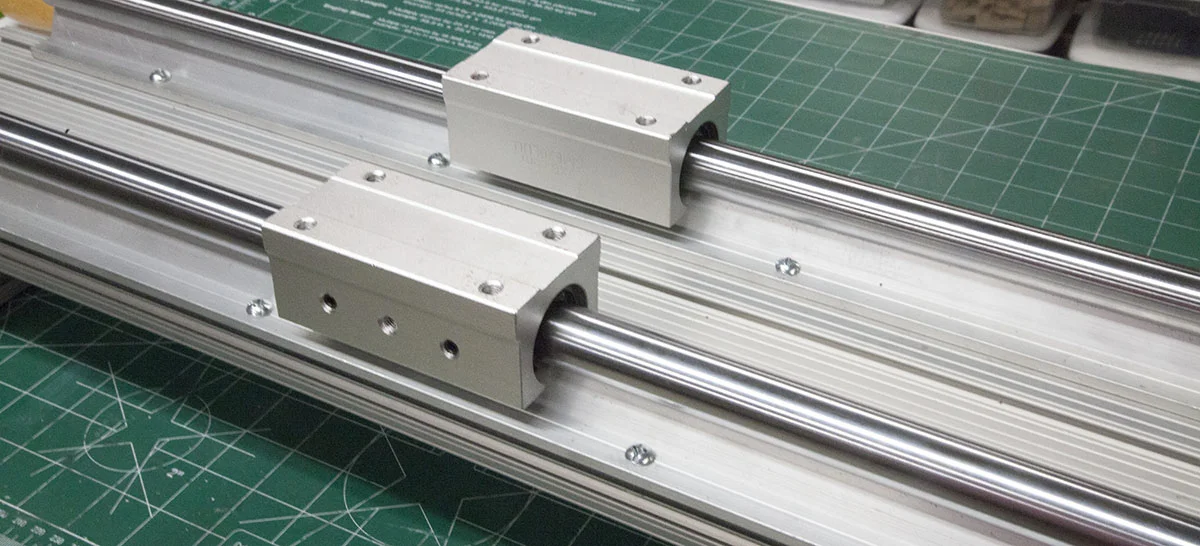

Make sure the truck adjustment screws are located on the outside as shown here.

Set the gantry with the bottom side up. You will need to place something about 1” thick under the lower truck to keep the gantry from tipping.

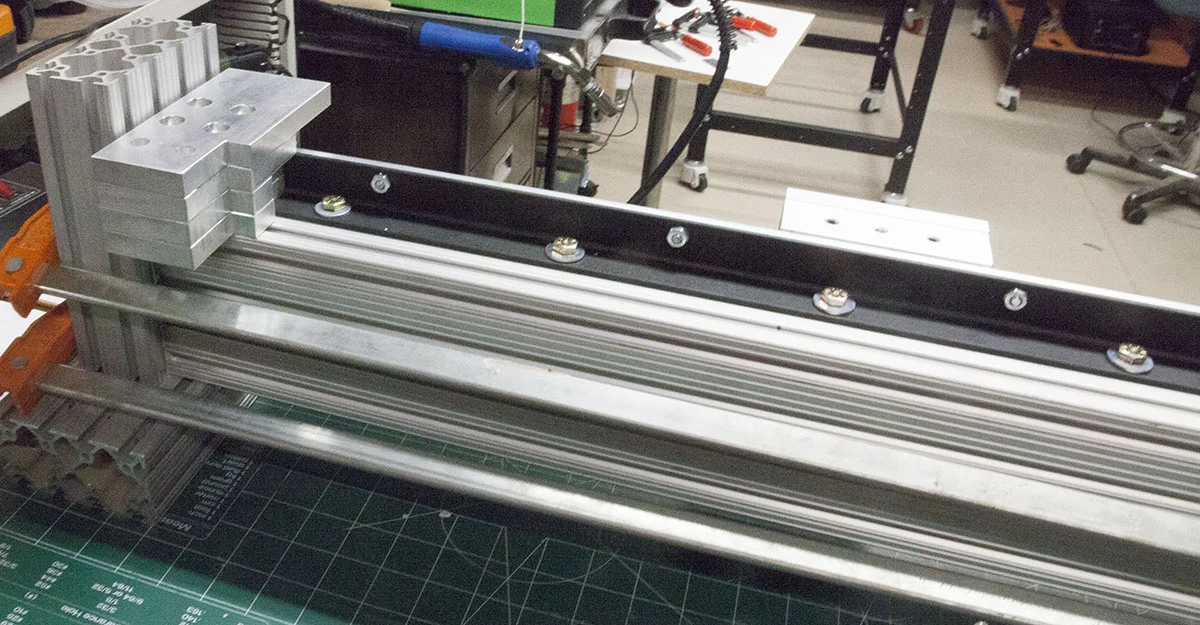

Slip the assembly over the end of the gantry by sliding the T-nuts into the slots as shown here. Note that the large cutouts go towards the front of the gantry.

Don’t tighten anything. Keep the assembly loose.

Clamp some scrap to the ends of the gantry as shown here.

Anything flat will work.

Push the assembly up against the scrap and tighten the button head screws.

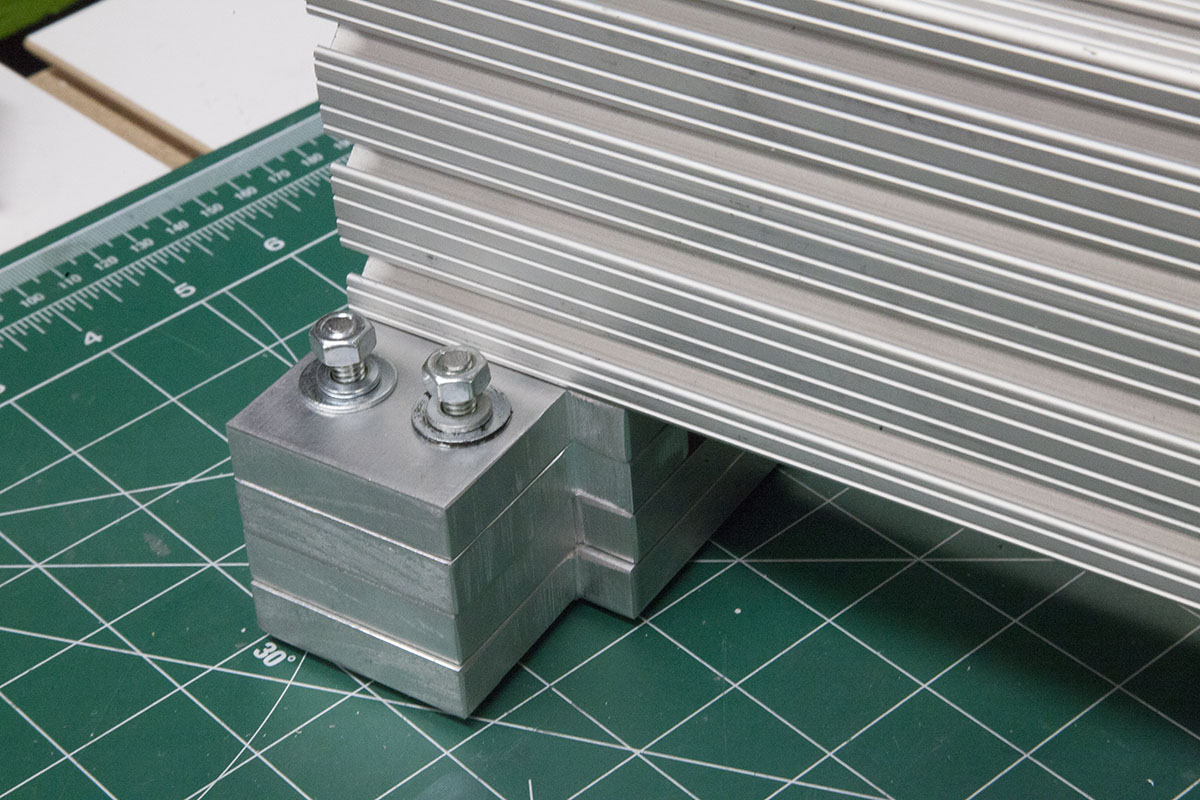

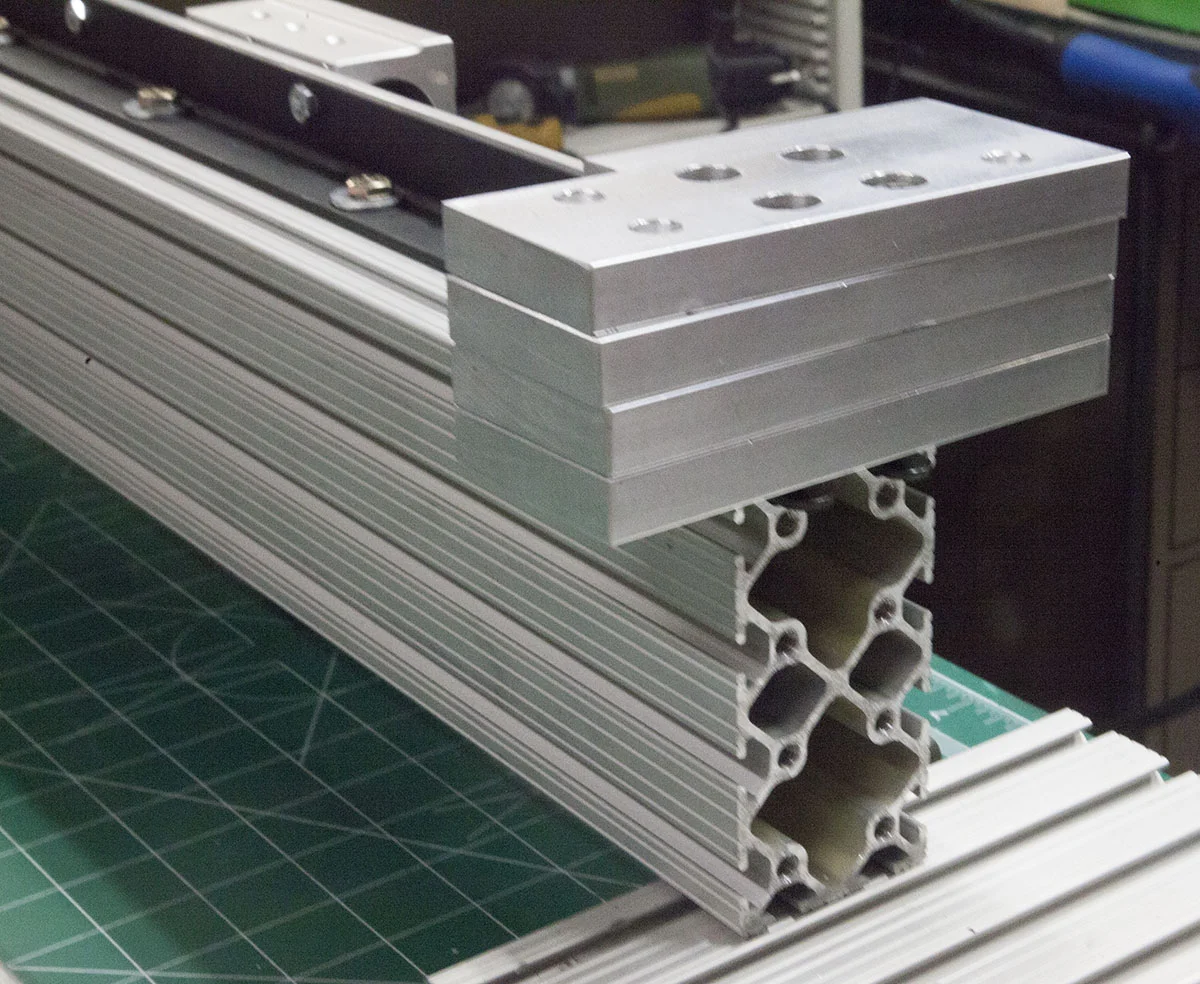

Shown here is the completed gantry. You can follow the instructions in the book for attaching the gantry to the Y carriages.

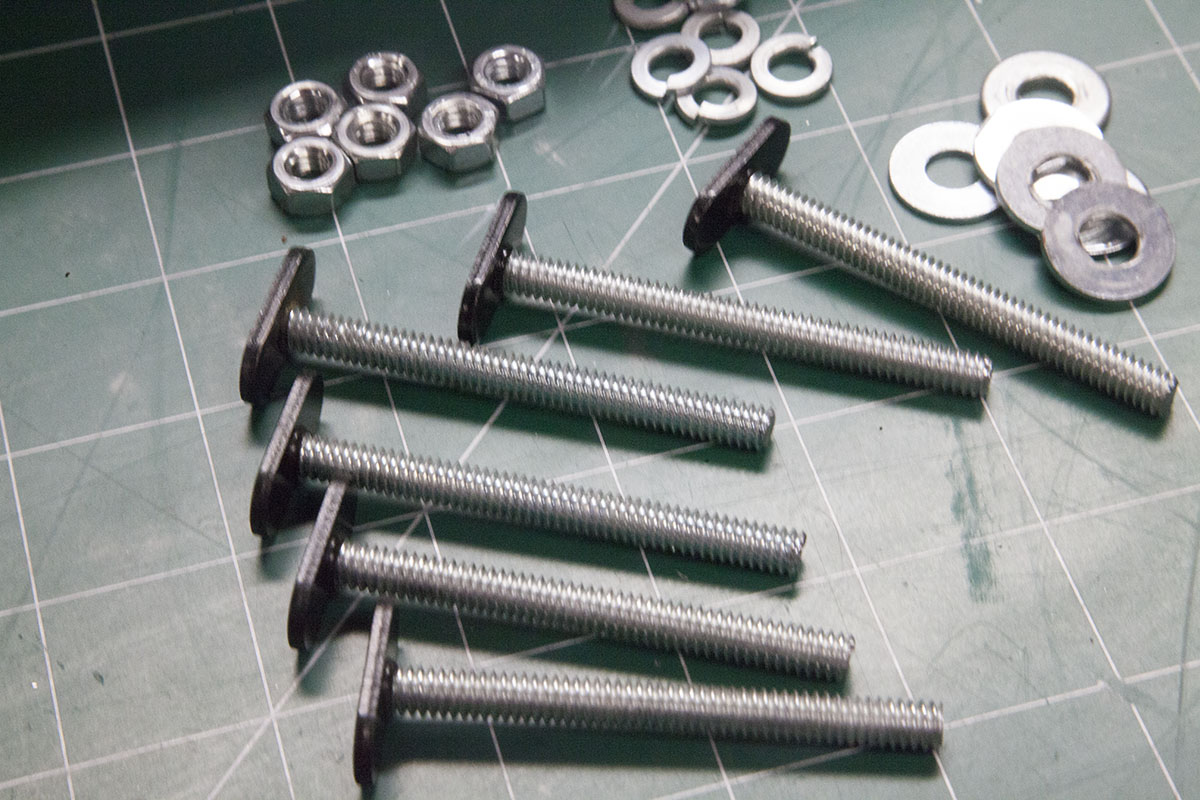

You are going to need:

• 6, 1/4-20 x 2-3/”4 pieces of threaded rod

• 6, 1/4-20 Hex nuts

• 6, 1/4” Plain washers

• 6, 1/4” Lock washers

• 6, 1/4-20 T-nuts

Attach the T-nuts to the threaded rod. The small lip on the T-nut should face the threaded rod. The other end should be flush with the end of the threaded rod.

Lay the gantry on its back and insert the T-nut and threaded rod assembly into each of the three holes on both riser assemblies.

Flip the gantry back over and add a 1/4” plain washer, 1/4” lock washer and a 1/4-20 hex nut to each of the protruding threaded rods.

Keep the loose.

Before trying to install the gantry on the build, I lock it down.

First, I move the gantry all the way to the rear. Leave enough room to install a small clamp.

Next, I clamp a piece of steel angle across the top of the two Y carriage extrusions.

Slide the t-nuts on the bottom of the gantry risers into the top slots on the rear of the Y carriage extrusion.

The rear of the risers should be flush with the rear of the Y carriage extrusion. The side of the gantry risers should be flush with the side of the Y carriage extrusion.

Tighten the six 1/4-20 hex nuts and remove all the holding clamps.

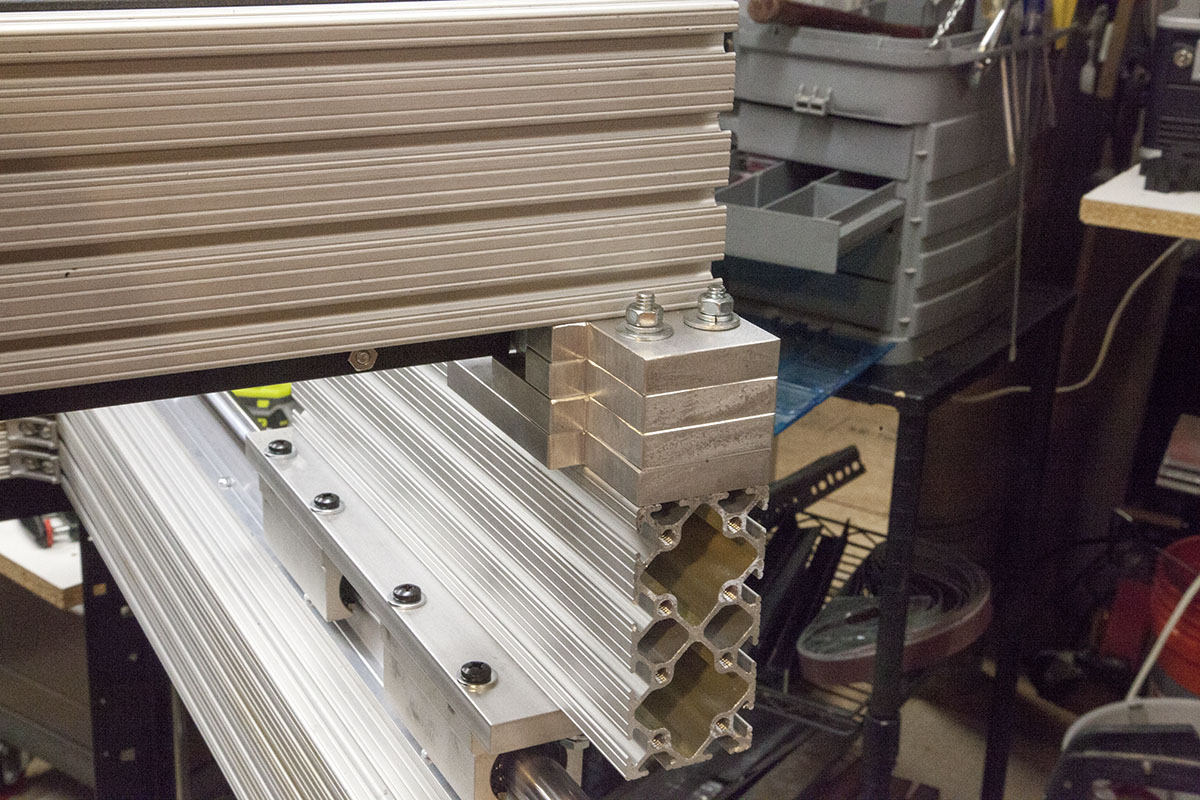

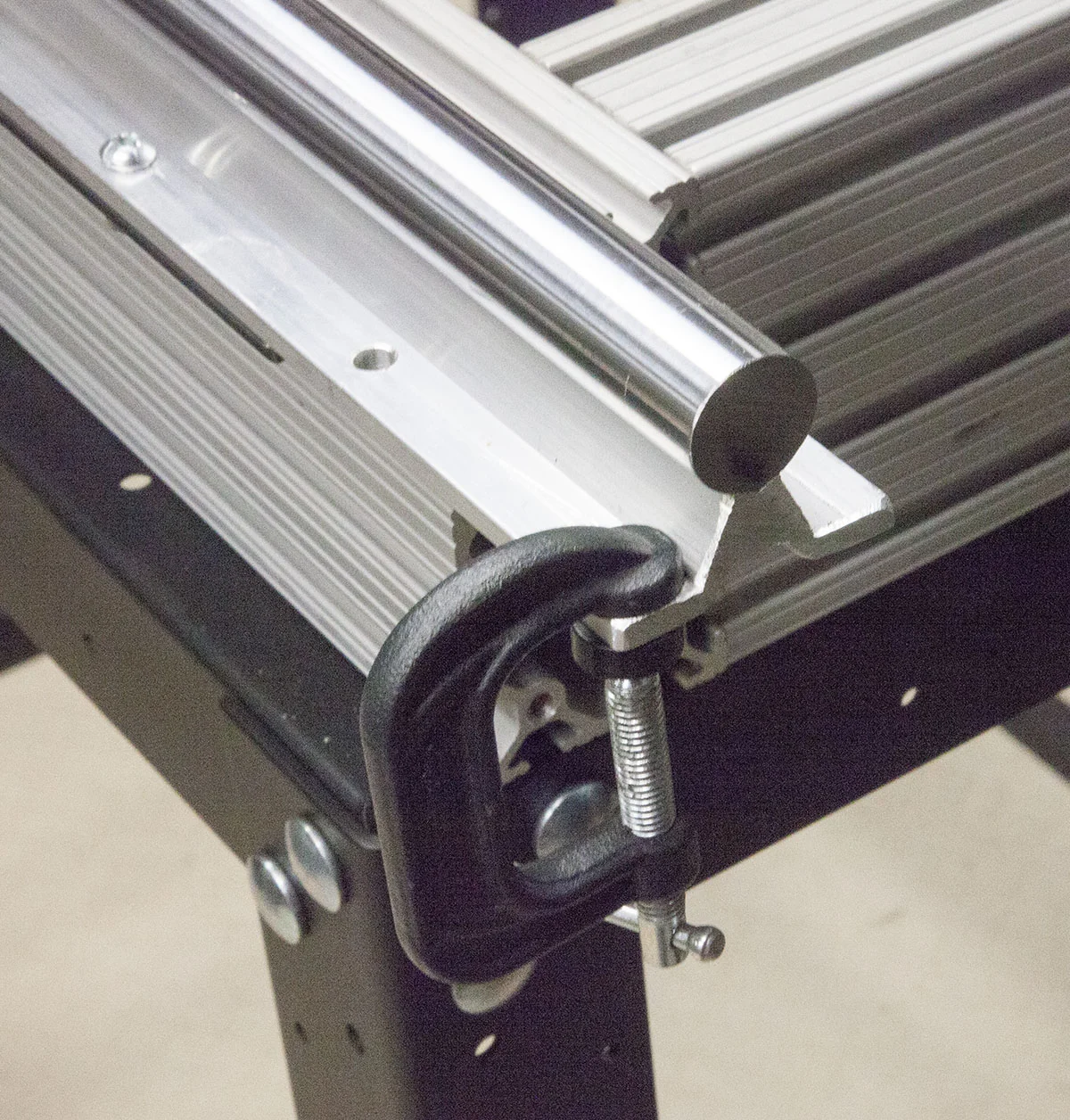

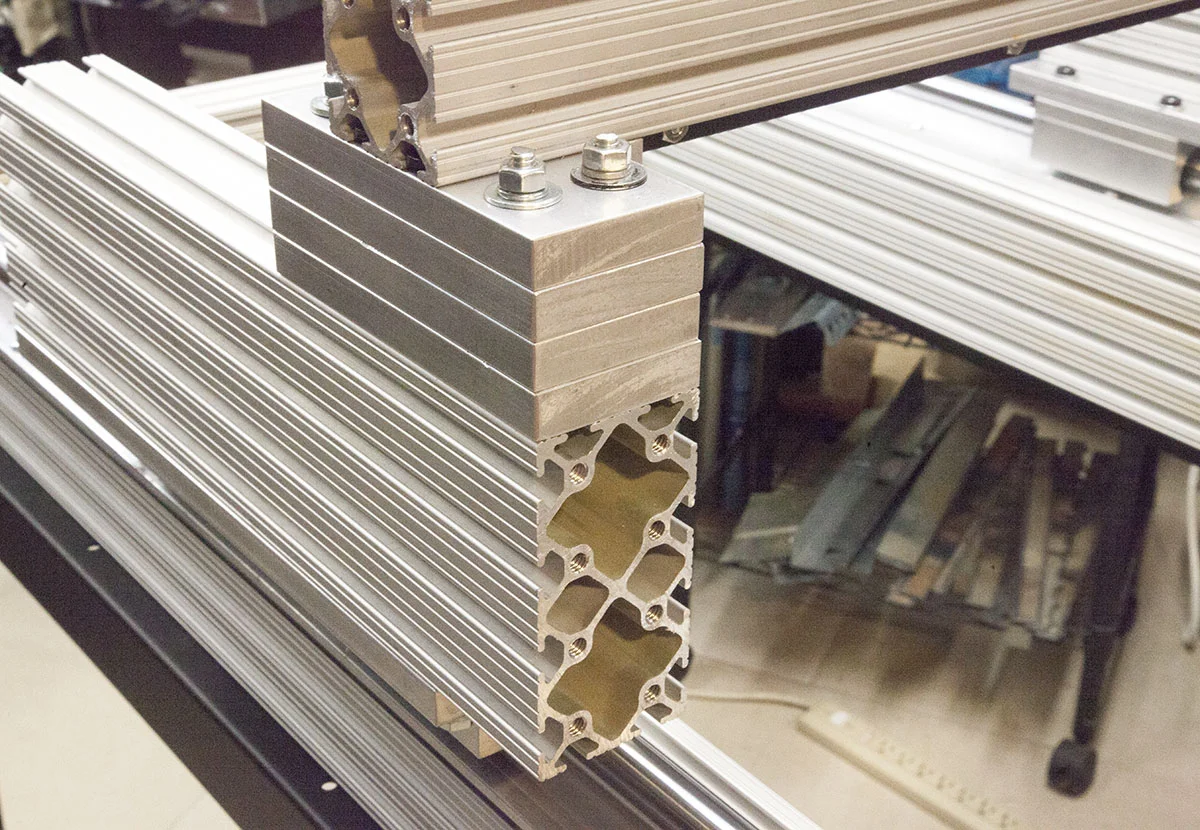

The gantry is now installed. In order to keep the trucks from running off the rails, add a small clamp to each corner.
